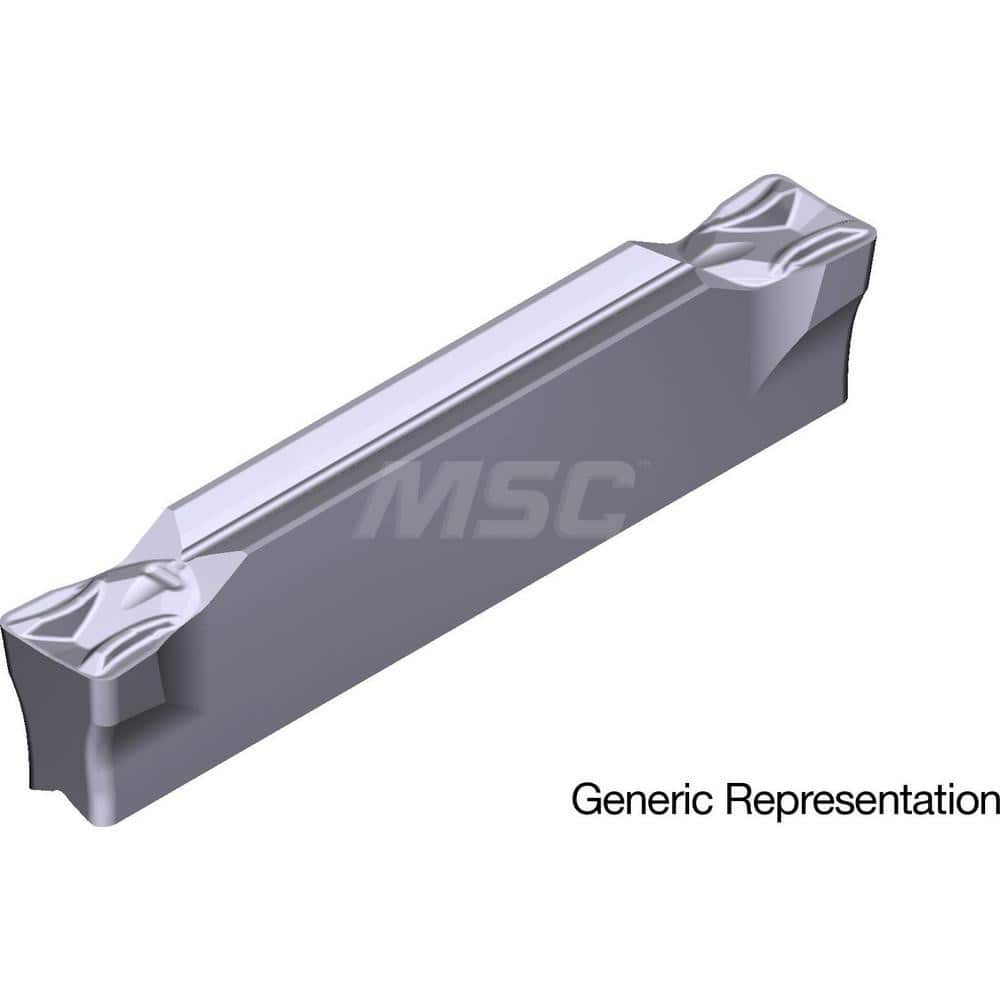

Grooving Insert: GCM3125MG AC5015S, Solid Carbide Absotech Finish, Neutral, 0.709″ Max Depth, Series GND
Item #: 17660150
Brand: Sumitomo
Model #: 18T5W0U
Product Specifications
| Insert Style | GCM |
| Insert Size | 3125 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5015S |
| Cutting Width (Inch) | 1/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.7090 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1500 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | PVD |
| Relief Angle | 7 |
| Manufacturers Catalog Number | GCMN3125R1.0-MG-AC5015S |
| Insert Thickness (Decimal Inch) | 0.1500 |
| Chip Breaker | MG |
| Coating/Finish | Absotech |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 3.81 |
