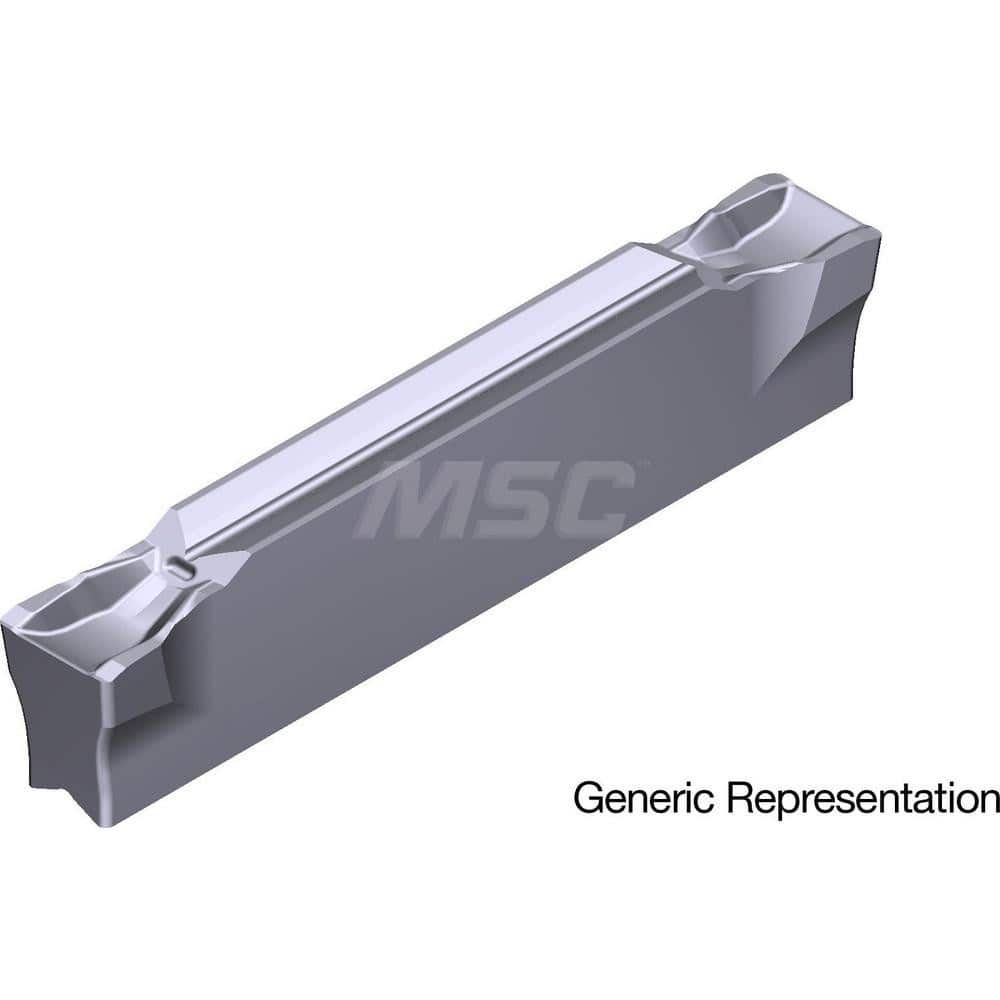

Grooving Insert: GCM6250GG AC5025S, Solid Carbide Absotech Finish, Neutral, 0.906″ Max Depth, Series GND
Item #: 17656166
Brand: Sumitomo
Model #: 18T6W14
Product Specifications
| Insert Style | GCM |
| Insert Size | 6250 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5025S |
| Cutting Width (Inch) | 1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.9060 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.3000 to 1.0000 |
| Cutting Height (Decimal Inch) | 0.1770 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Cutting Tool Application | Grooving |
| Series | GND |
| Coating Process | PVD |
| Relief Angle | 7 |
| Manufacturers Catalog Number | GCMN6250R1.0-GG-AC5025S |
| Insert Thickness (Decimal Inch) | 0.1770 |
| Chip Breaker | GG |
| Coating/Finish | Absotech |
| Number Of Cutting Edges | 2 |
| Insert Thickness | 4.50 |
