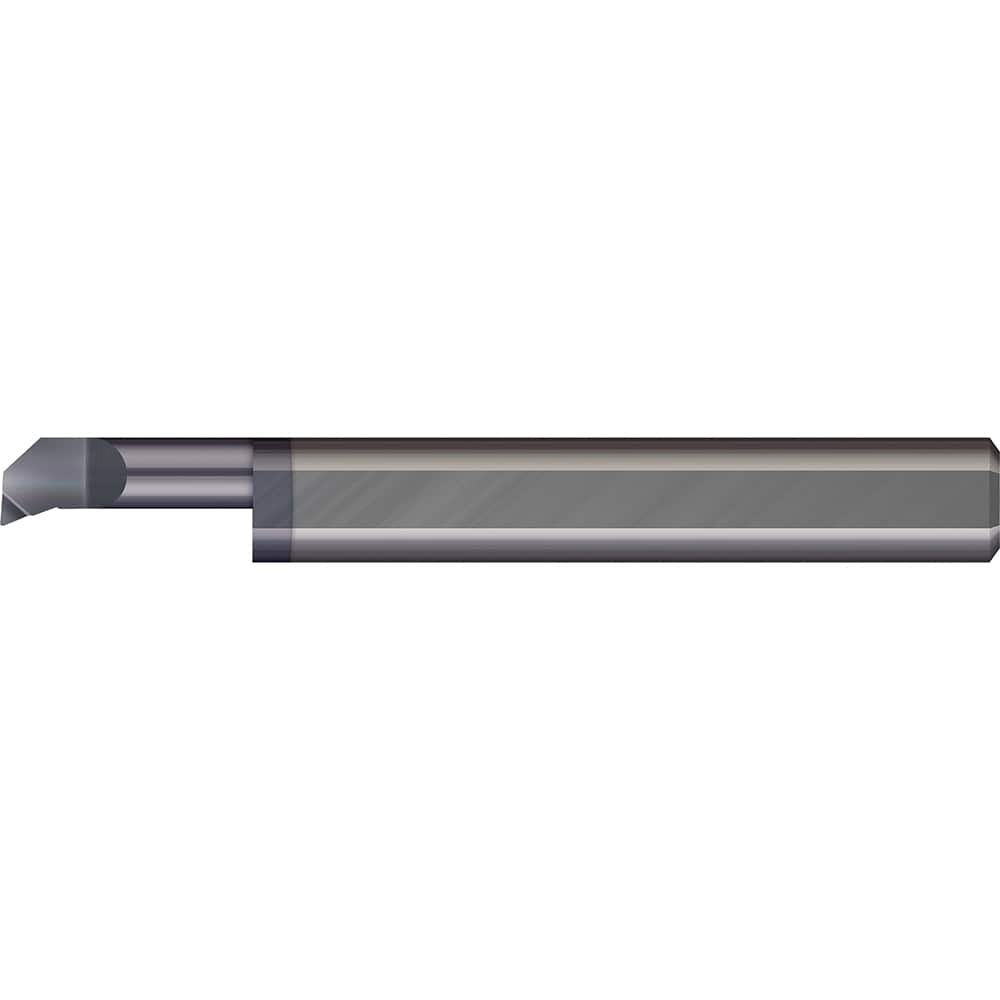

Boring Bar: 0.11″ Min Bore, 0.4″ Max Depth, Right Hand Cut, Solid Carbide 1/8″ Shank Dia, 1-1/2″ OAL, 0.002″ Corner Radius
Item #: 17623299
Brand: Micro 100
Model #: PBT2-100400X
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1100 |
| Minimum Bore Diameter (mm) | 2.80 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.4000 |
| Shank Diameter (Decimal Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Finish Coating | AlTiN |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturers Catalog Number | PBT2-100400X |
| Offset (Decimal Inch) | 0.0370 |
| Overall Length (Decimal Inch) | 1.5000 |
| Projection (Decimal Inch - 4 Decimals) | 0.0150 |
