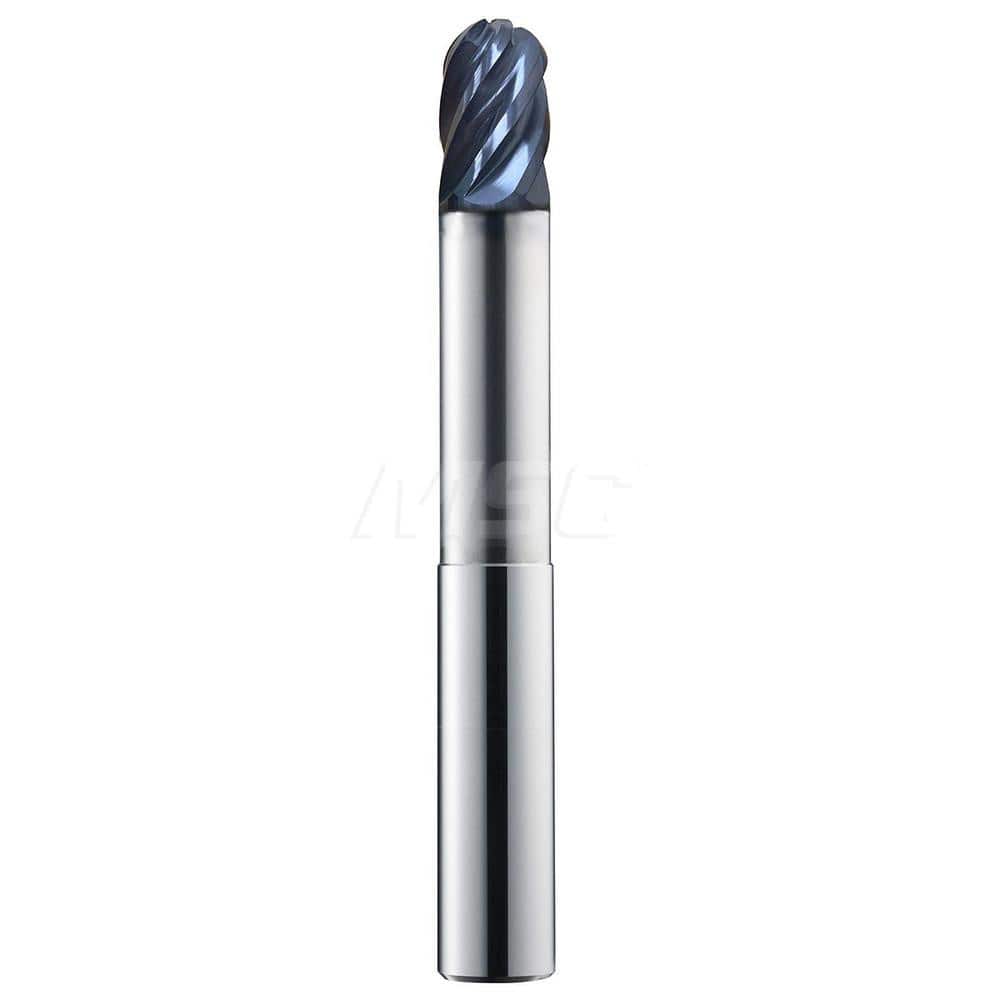

Ball End Mill: 1″ Dia, 6 Flute, Solid Carbide 6″ OAL, 1″ Shank Dia, 35 to 45 ° Helix, Ti-NAMITE-X Coated, Single End, Series 51B
Item #: 17564501
Brand: SGS
Model #: 35231
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| Helix Angle | 35 to 45 |
| Undercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Helix Style | High |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Neck Length (Inch) | 2-1/8 |
| Neck Length (Decimal Inch) | 2.1250 |
| Reach Length (Inch) | 3-3/8 |
| Overall Length (Inch) | 6 |
| Mill Diameter Tolerance | +0.000 to -0.002 |
| Maximum Helix Angle | 45.00 |
| Minimum Helix Angle | 35.00 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 51B |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 6 |
| Coating/Finish | Ti-NAMITE-X |
