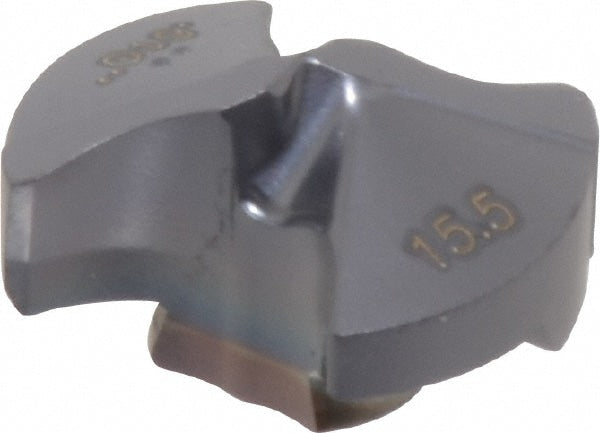

Replaceable Drill Tips: IDI.610SG IC908, 0.6100" Dia, 15.49 mm Dia, 140 deg Point, IC908
Item #: 08079857
Brand: Iscar
Model #: 5504901
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.6100 |
| Cutting Diameter (mm) | 15.49 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | IDI-SG |
| Coating Process | PVD |
| Insert Geometry | SG |
| Insert Seat Size | 15 |
| Functional Length (Decimal Inch) | 0.1805 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.291 |
| Height (mm) | 7.00 |
| Overall Length/Projection (Decimal Inch) | 0.2916 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | IDI 155-SG |
| Coolant Through | No |
| Flute Length (mm) | 5.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | IDI-SG |
| UNSPSC Code | 23242105 |
| Applications | Drilling; Hole Making |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
