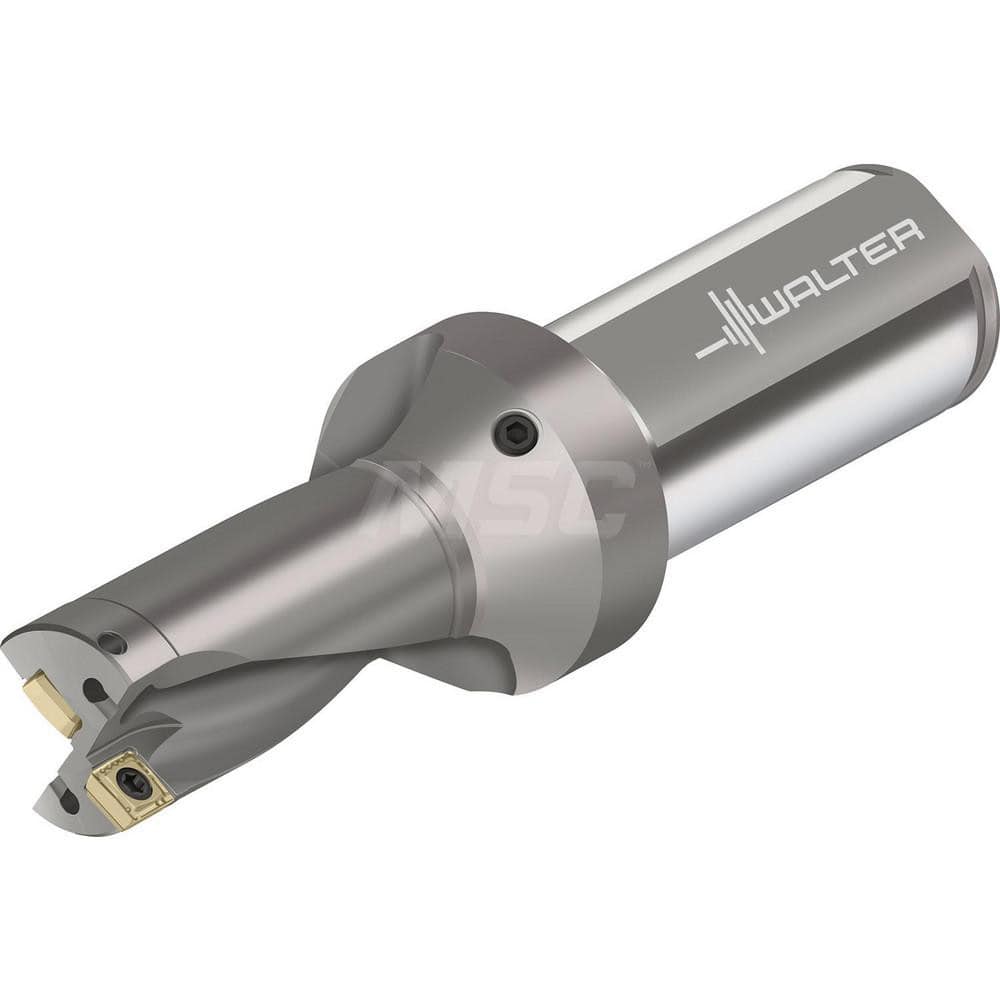

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 1.2500; Drill Diameter (mm): 31.75; Maximum Drill Depth (Decimal Inch): 2.5000; Maximum Drill Depth (mm): 64.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/4; Sh
Item #: 17229832
Brand: Walter
Model #: 6929567
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 1.2500 |
| Drill Diameter (mm) | 31.75 |
| Maximum Drill Depth (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (mm) | 64.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 2xD |
| Flute Length (Decimal Inch) | 3.4840 |
| Flute Length (mm) | 88.50 |
| Body Length | 91.78 |
| Body Length (Decimal Inch) | 3.6140 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 5.9110 |
| Overall Length/Projection (mm) | 150.14 |
| Coolant Through | Yes |
