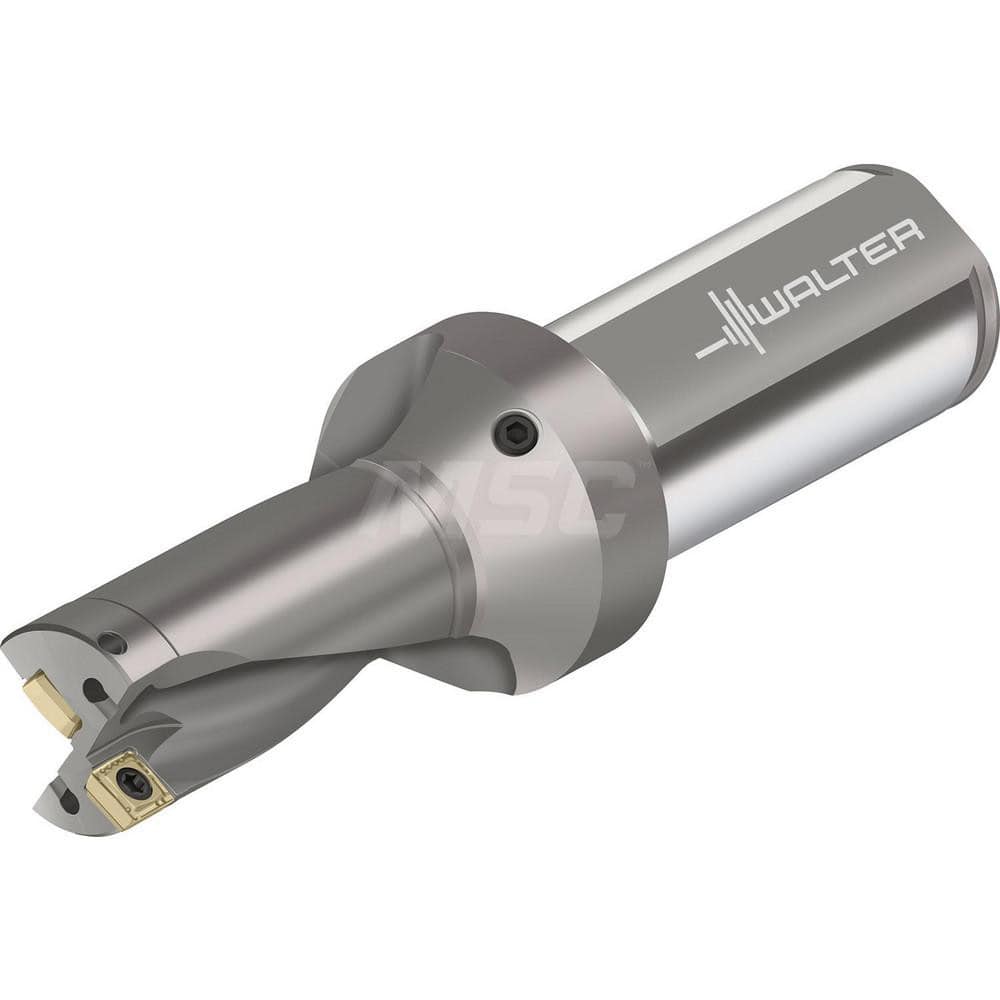

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 1.3120; Drill Diameter (mm): 33.33; Maximum Drill Depth (Decimal Inch): 2.6240; Maximum Drill Depth (mm): 67.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/4; Sh
Item #: 17229816
Brand: Walter
Model #: 6929568
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 1.3120 |
| Drill Diameter (mm) | 33.33 |
| Maximum Drill Depth (Decimal Inch) | 2.6240 |
| Maximum Drill Depth (mm) | 67.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Drill Diameter Range (Decimal Inch) | 1.3000 to 1.5000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 2.0000 to 3.0000 |
| Maximum Drill Depth Range (mm) | 50.00 to 75.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 2xD |
| Flute Length (Decimal Inch) | 3.5980 |
| Flute Length (mm) | 91.40 |
| Body Length | 94.83 |
| Body Length (Decimal Inch) | 3.7340 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 6.0310 |
| Overall Length/Projection (mm) | 153.19 |
| Coolant Through | Yes |
