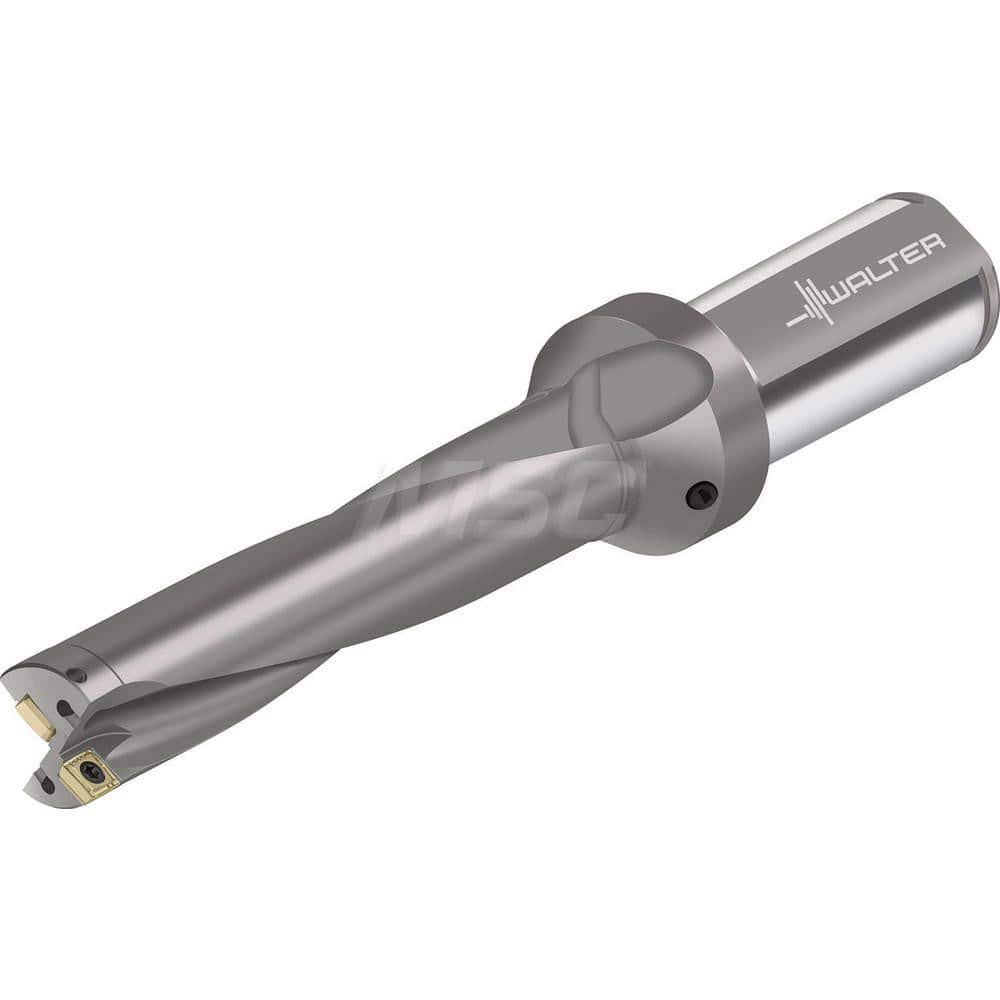

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 1.0460; Drill Diameter (mm): 26.57; Maximum Drill Depth (Decimal Inch): 5.2300; Maximum Drill Depth (mm): 133.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/4; S
Item #: 17224619
Brand: Walter
Model #: 6929708
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 1.0460 |
| Drill Diameter (mm) | 26.57 |
| Maximum Drill Depth (Decimal Inch) | 5.2300 |
| Maximum Drill Depth (mm) | 133.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Drill Diameter Range (Decimal Inch) | 1.0000 to 1.3000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 100.00 to 150.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 6.2320 |
| Flute Length (mm) | 158.30 |
| Body Length | 161.17 |
| Body Length (Decimal Inch) | 6.3450 |
| Shank Length (Decimal Inch) | 2.2810 |
| Shank Length (mm) | 57.94 |
| Overall Length/Projection (Decimal Inch) | 8.6410 |
| Overall Length/Projection (mm) | 219.48 |
| Coolant Through | Yes |
