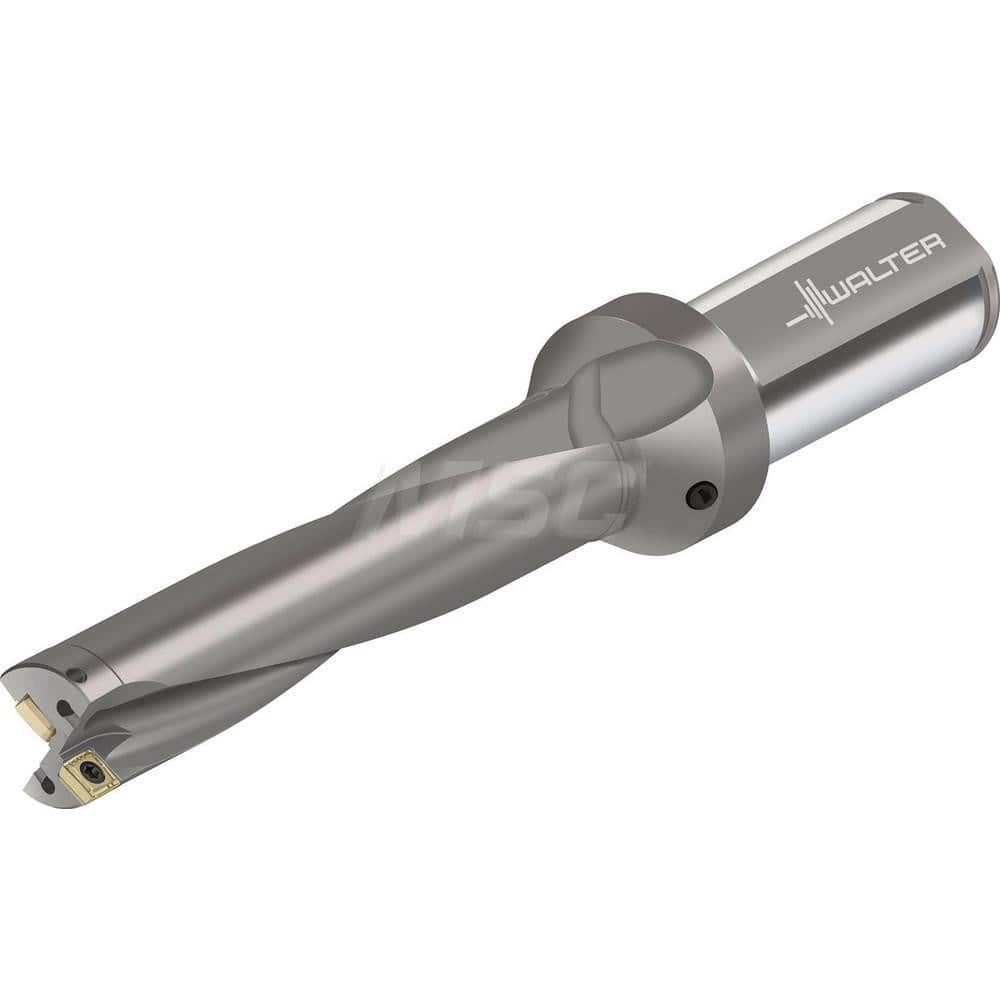

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 1.5000; Drill Diameter (mm): 38.10; Maximum Drill Depth (Decimal Inch): 7.5000; Maximum Drill Depth (mm): 191.00; Shank Type: Straight-Cylindrical; Shank Diameter (Inch): 1-1/2; S
Item #: 17224544
Brand: Walter
Model #: 6929720
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 1.5000 |
| Drill Diameter (mm) | 38.10 |
| Maximum Drill Depth (Decimal Inch) | 7.5000 |
| Maximum Drill Depth (mm) | 191.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/2 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Drill Diameter Range (Decimal Inch) | 1.5000 to 2.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 8.6570 |
| Flute Length (mm) | 219.90 |
| Body Length | 225.07 |
| Body Length (Decimal Inch) | 8.8610 |
| Shank Length (Decimal Inch) | 2.6880 |
| Shank Length (mm) | 68.27 |
| Overall Length/Projection (mm) | 293.82 |
| Coolant Through | Yes |
