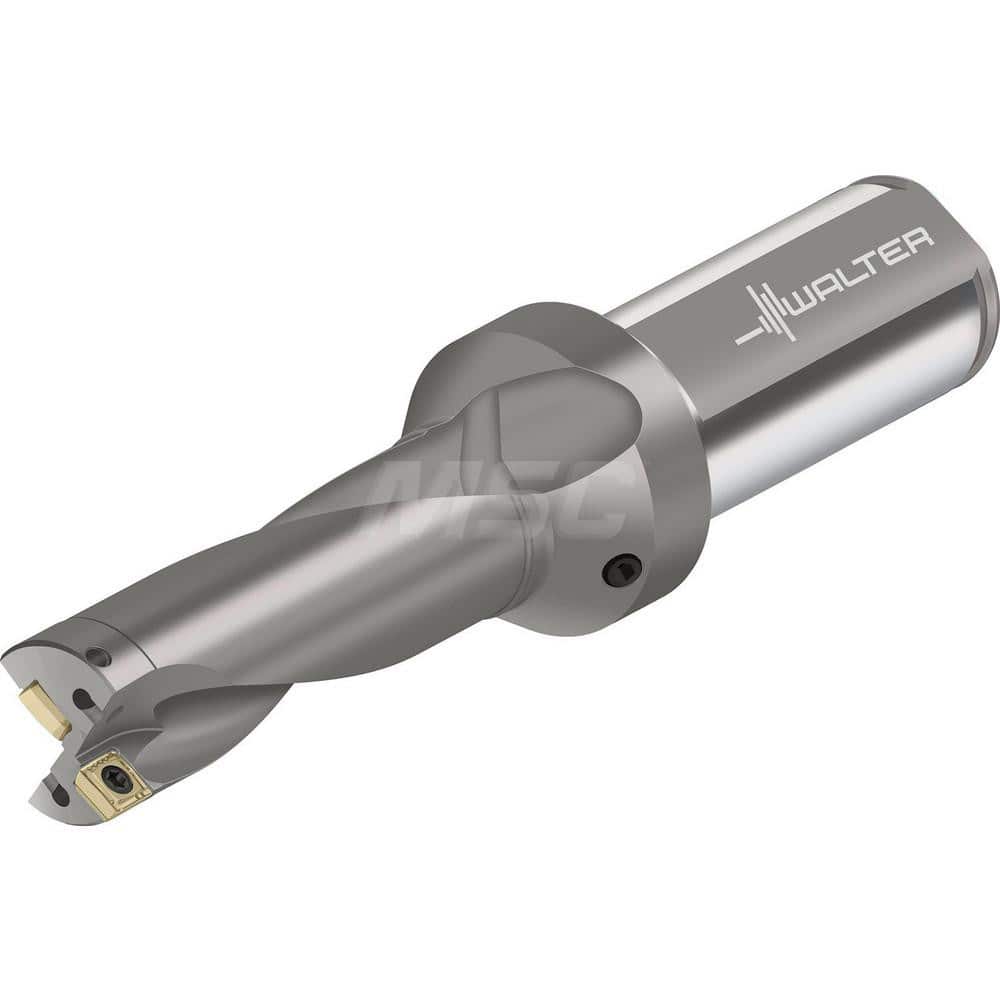

Indexable Insert Drills; Drill Style: D4120; Drill Diameter (Decimal Inch): 2.0870; Drill Diameter (mm): 53.00; Maximum Drill Depth (Decimal Inch): 6.2600; Maximum Drill Depth (mm): 159.00; Shank Type: Straight-Cylindrical; Shank Diameter (Decimal Inch):
Item #: 17224452
Brand: Walter
Model #: 6929343
Product Specifications
| Drill Style | D4120 |
| Drill Diameter (Decimal Inch) | 2.0870 |
| Drill Diameter (mm) | 53.00 |
| Maximum Drill Depth (Decimal Inch) | 6.2600 |
| Maximum Drill Depth (mm) | 159.00 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5750 |
| Shank Diameter (mm) | 40.00 |
| Drill Diameter Range (Decimal Inch) | 2.0000 to 3.0000 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 5.0000 to 7.0000 |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | P484 |
| Drill Depth by Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 7.3660 |
| Flute Length (mm) | 187.10 |
| Body Length | 198.39 |
| Body Length (Decimal Inch) | 7.8110 |
| Shank Length (Decimal Inch) | 2.7560 |
| Shank Length (mm) | 70.00 |
| Overall Length/Projection (mm) | 269.00 |
| Coolant Through | Yes |
