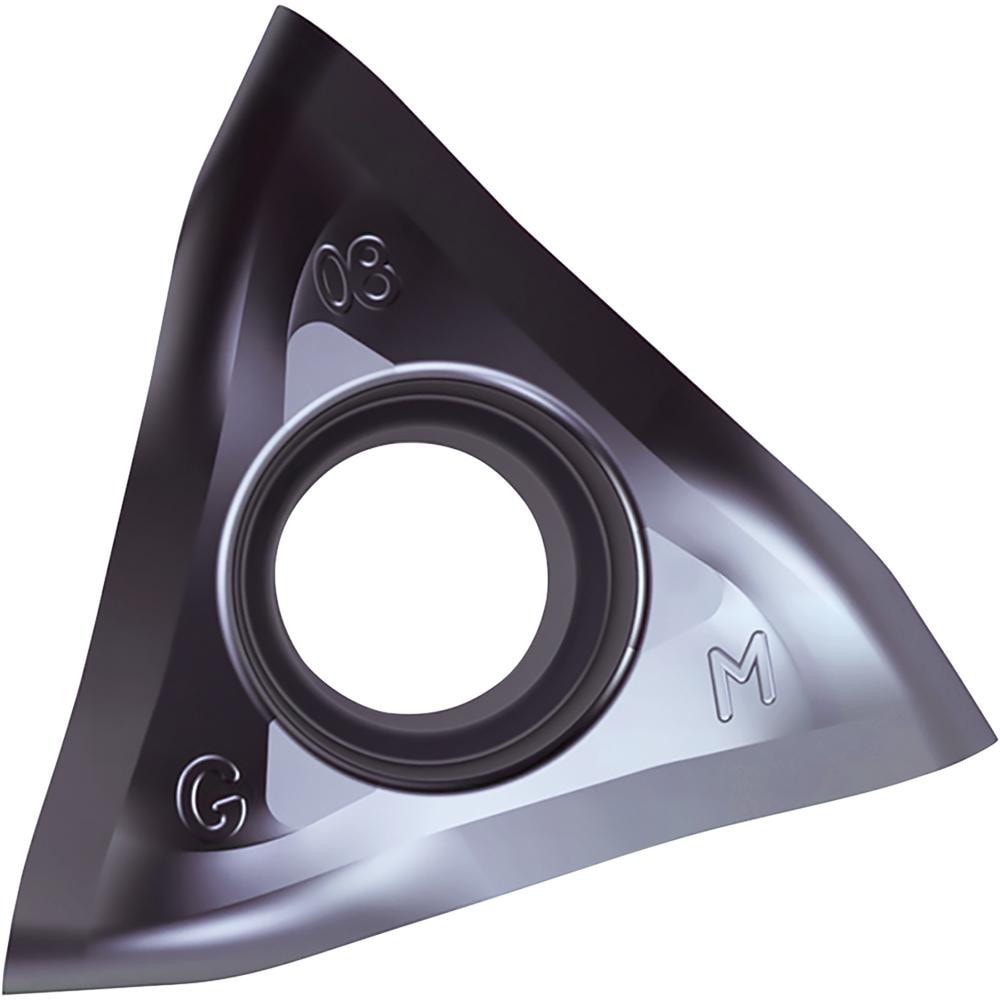

Milling Insert: TOMT060504ER-GM PR1810, Carbide
Item #: 86709938
Brand: Kyocera
Model #: TLS00047
Product Specifications
| Insert Style | TOMT |
| Insert Size | 060504 |
| Insert Material | Carbide |
| Insert Shape | Triangle |
| Manufacturer Grade | PR1810 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 3 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2244 |
| Thickness (mm) | 5.7000 |
| Coating/Finish | MEGACOAT NANO EX |
| Inscribed Circle (Decimal Inch) | 0.2835 |
| Inscribed Circle (mm) | 7.20 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | MEV Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.4000 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Rake | Positive |
| Primary Workpiece Material | Nodular Cast Iron; Gray Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | TOMT060504ERGMPR1810 |
| Iso Code | TOMT060504ER-GM |
| Manufacturers Catalog Number | TOMT060504ERGMPR1810 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 60 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
