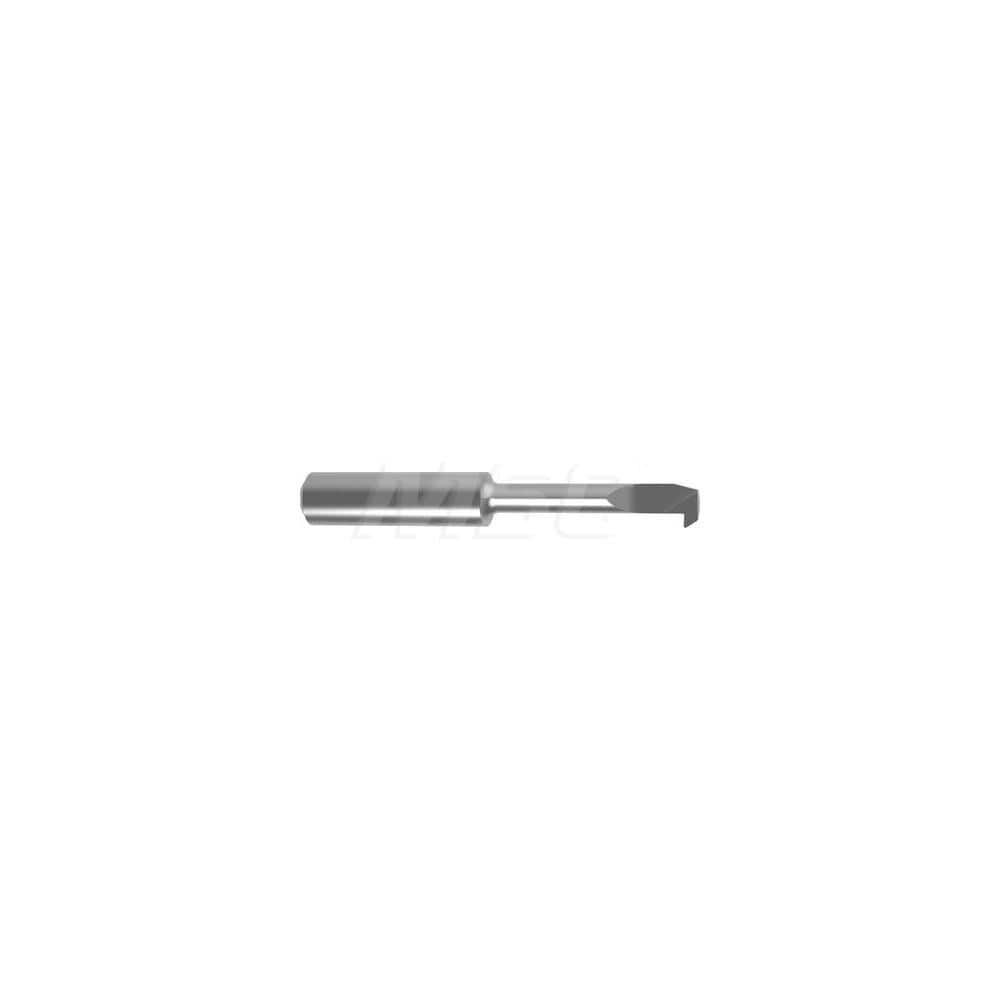

Back Boring Bar: 0.2756″ Min Bore, 1.6535″ Max Depth, Left Hand Cut, Carbide 2.6378″ OAL, 0.0079″ Corner Radius
Item #: 17194549
Brand: Guhring
Model #: 9271230080400
Product Specifications
| Boring Bar Type | Back Boring |
| Cutting Direction | Left Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.2756 |
| Minimum Bore Diameter (mm) | 7.00 |
| Material | Carbide |
| Maximum Bore Depth (Decimal Inch) | 1.6535 |
| Maximum Bore Depth (mm) | 42.00 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 67.00 |
| Finish Coating | Uncoated |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Series | GT 108 |
| Manufacturers Catalog Number | GT108.3267.020.42.70.L.B1 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Overall Length (Decimal Inch) | 2.6378 |
| Primary Workpiece Material | N |
| Relief Angle | 32 |
| Secondary Workpiece Material | P; K |
