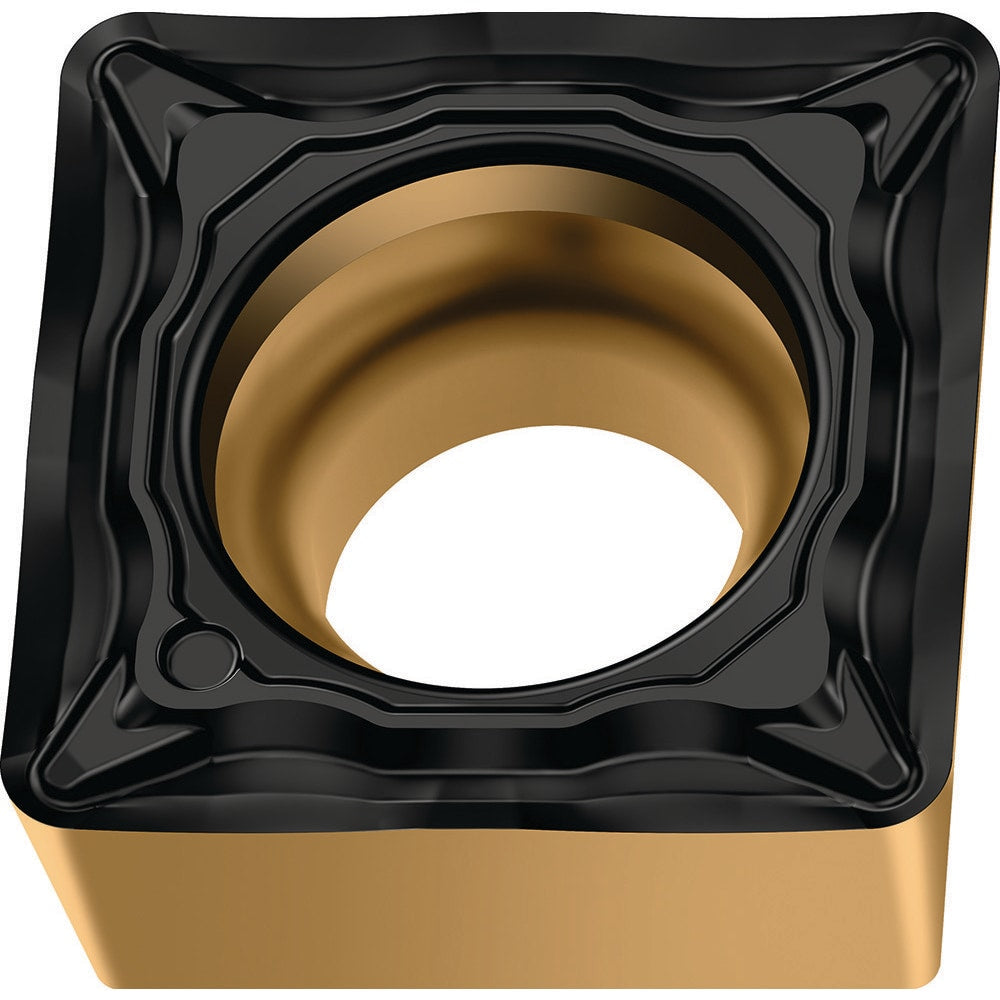

Turning Insert: SCMT32.52FP4 WKP01G, Carbide
Item #: 91737668
Brand: Walter
Model #: 8422892
Product Specifications
| ANSI Insert Code | SCMT3(2.5)2 |
| ISO Insert Code | SCMT09T308 |
| Relief Angle | 7.000 |
| Insert Style | SCMT |
| Corner Radius (mm) | 0.80 |
| Included Angle | 90.00 |
| Manufacturer Grade | WKP01G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Series | SCMT |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance; Steel (P) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | S |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 1.80 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 9.53 |
| Manufacturers Catalog Number | SCMT09T308-FP4 WKP01G |
| Chip Breaker | FP4 |
| Width (mm - 2 Decimals) | 9.53 |
| ANSI Size Code | 3(2.5)2 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 09 |
| Country of Origin | Germany |
