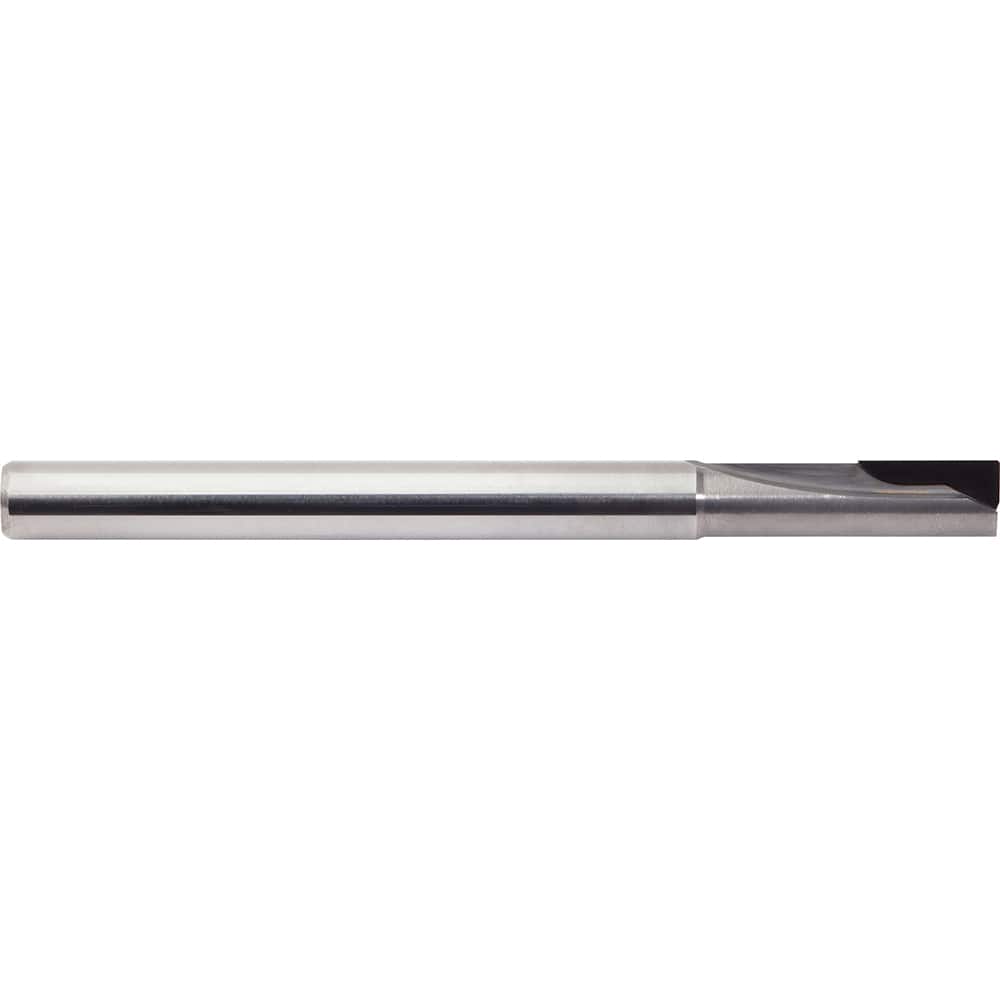

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; End Type: Corner Chamfer ; Chamfer Width (Decimal Inch): 0.005 ; Number of Flutes: 1 ; Material: PCD
Item #: 17112913
Brand: M.A. Ford
Model #: DE1S1250
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/8 ; Mill Diameter (Decimal Inch): 0.1250 ; End Type: Corner Chamfer ; Chamfer Width (Decimal Inch): 0.005 ; Number of Flutes: 1 ; Material: PCD
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| End Type | Corner Chamfer |
| Chamfer Width (Decimal Inch) | 0.005 |
| Number of Flutes | 1 |
| Material | PCD |
| Finish/Coating | Uncoated |
| Length of Cut (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Straight |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Variable Index | No |
| Variable Helix | No |
| Material Grade | PCD |
| Single or Double End | Single |
| Length Type | Standard |
| Centercutting | Yes |
| Flute Direction | Right Hand |
