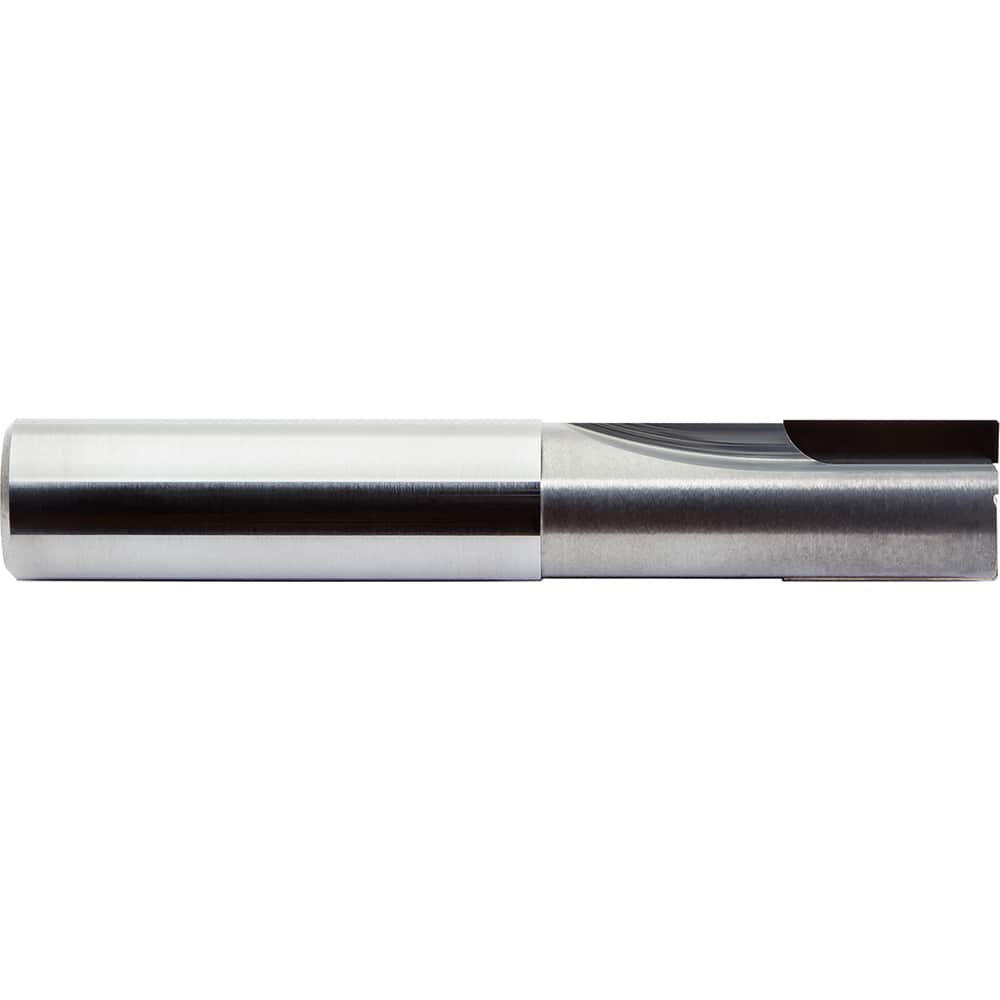

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 12.00 ; Mill Diameter (Decimal Inch): 0.4724 ; End Type: Corner Chamfer ; Chamfer Width (Decimal Inch): 0.2500 ; Number of Flutes: 2 ; Material: PCD
Item #: 17110404
Brand: M.A. Ford
Model #: DE2SM1201
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 12.00 ; Mill Diameter (Decimal Inch): 0.4724 ; End Type: Corner Chamfer ; Chamfer Width (Decimal Inch): 0.2500 ; Number of Flutes: 2 ; Material: PCD
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| End Type | Corner Chamfer |
| Chamfer Width (Decimal Inch) | 0.2500 |
| Number of Flutes | 2 |
| Material | PCD |
| Finish/Coating | Altima Xtreme |
| Length of Cut (mm) | 25.0000 |
| Length of Cut (Decimal Inch) | 0.9843 |
| Shank Diameter (mm) | 12.0000 |
| Overall Length (mm) | 75.0000 |
| Flute Type | Straight |
| Cutting Direction | Right Hand |
| Helix Angle | 0 |
| Variable Index | No |
| Variable Helix | No |
| Material Grade | PCD |
| Single or Double End | Single |
| Length Type | Standard |
| Centercutting | Yes |
| Flute Direction | Right Hand |
