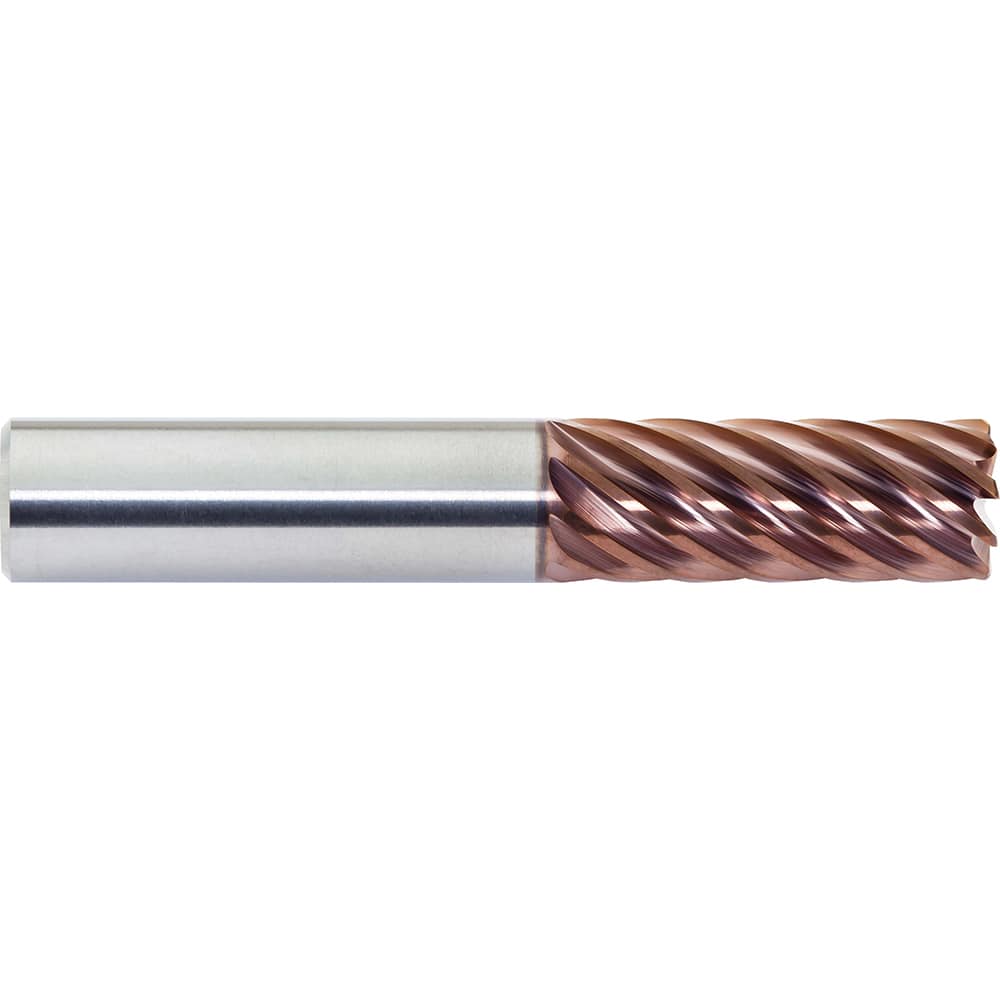

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; End Type: Corner Radius ; Corner Radius (mm): 1.00 ; Corner Radius (Decimal Inch): 0.0394 ; Number of Flutes: 9
Item #: 17110362
Brand: M.A. Ford
Model #: 380M2000-1.0RAX
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; End Type: Corner Radius ; Corner Radius (mm): 1.00 ; Corner Radius (Decimal Inch): 0.0394 ; Number of Flutes: 9
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| End Type | Corner Radius |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Number of Flutes | 9 |
| Material | Solid Carbide |
| Finish/Coating | Altima Xtreme |
| Length of Cut (mm) | 52.0000 |
| Length of Cut (Decimal Inch) | 2.0472 |
| Shank Diameter (mm) | 20.0000 |
| Overall Length (mm) | 104.0000 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | No |
| Variable Helix | No |
| Material Grade | Solid Carbide |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | No |
| Flute Direction | Right Hand |
