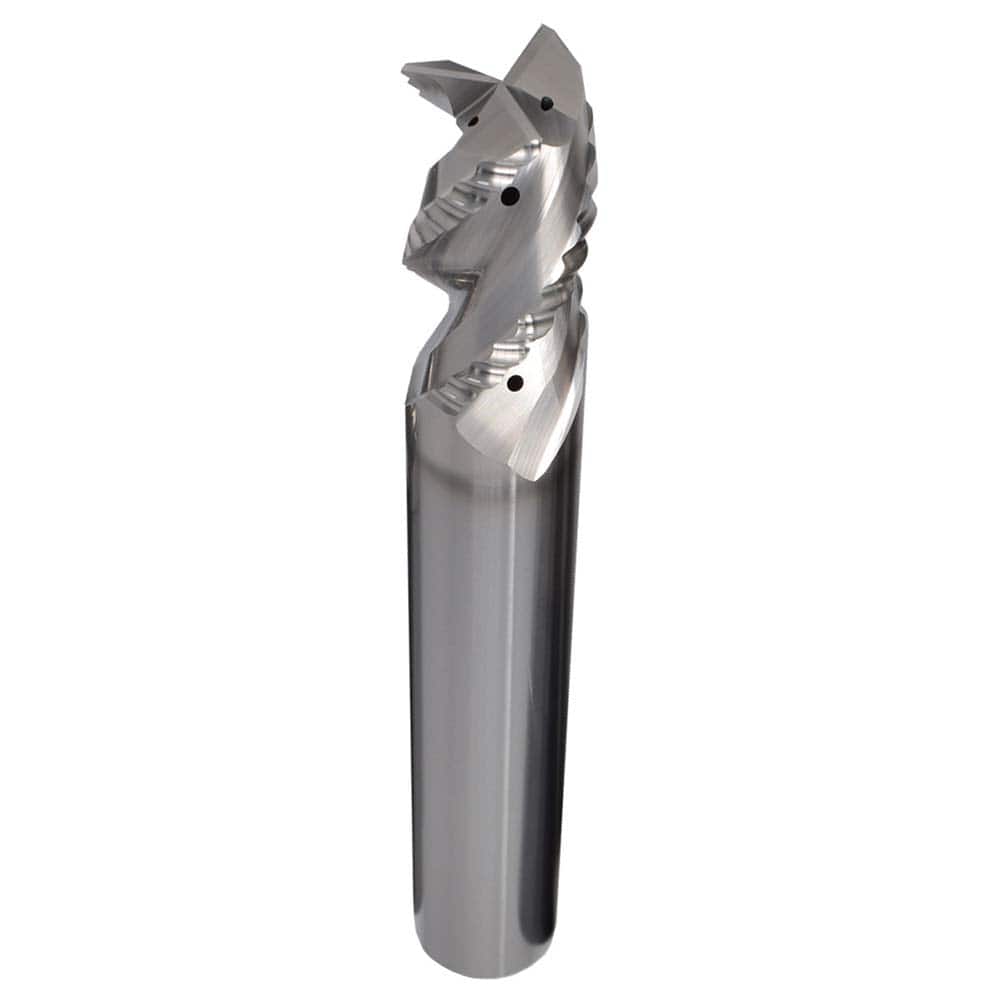

SGS - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.03 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 17060773
Brand: SGS
Model #: 34108
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.03 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.03 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TI-NAMITE-B |
| Length of Cut (Inch) | 1.375 |
| Shank Diameter (Inch) | 0.625 |
| Overall Length (Inch) | 4.25 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Reach Length (Inch) | 2.625 |
| Neck Diameter (Decimal Inch) | 0.5940 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 38 |
| Length Type | Extended |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +.00040/-0.0020 |
| Corner Radius Tolerance (Decimal Inch) | +0.0000 to -0.0020 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | Yes |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.062 |
| Shank Type | Straight |
| PSC Code | 3455 |
| Series/List | APR |
