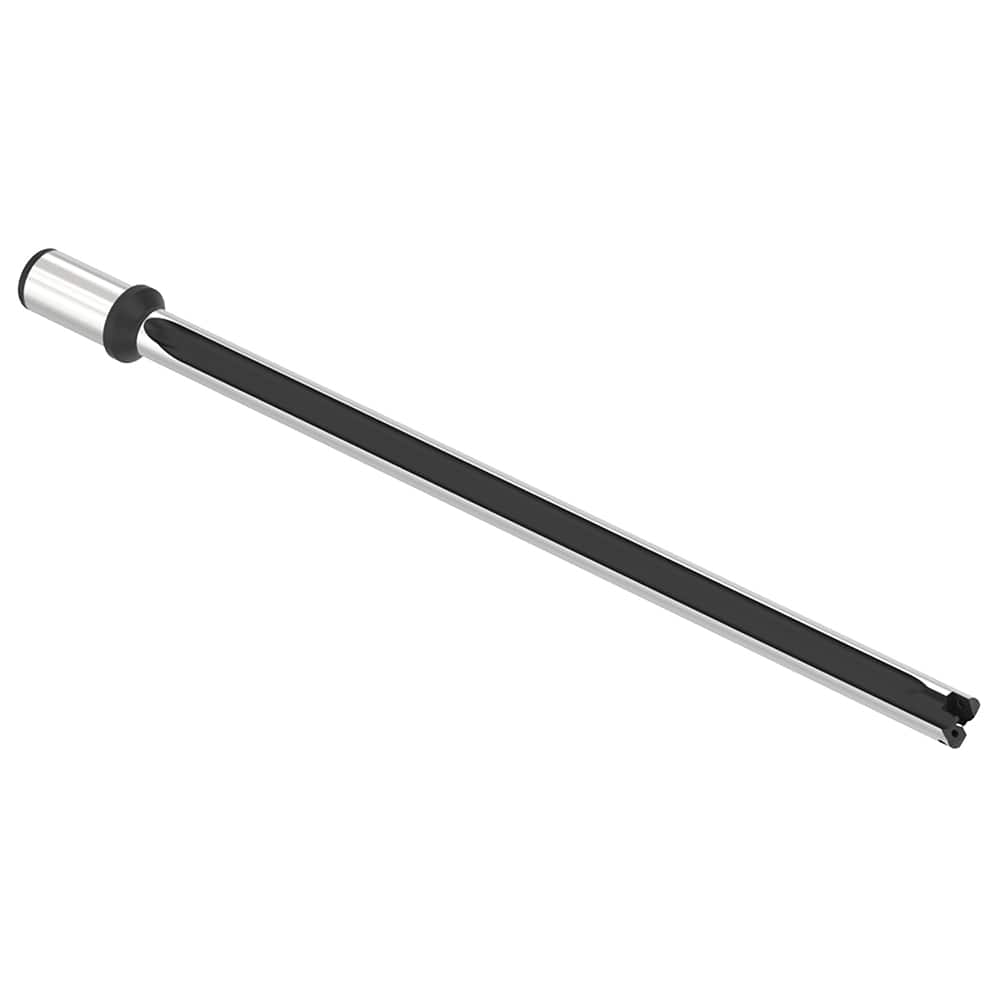

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (Inch): 1 ; Maximum Drill Diameter (Decimal Inch): 1.3800 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.25 ; Spade Drill Length: Extended Length
Item #: 16723652
Brand: Allied Machine and Engineering
Model #: HTA2B15-125C
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (Inch): 1 ; Maximum Drill Diameter (Decimal Inch): 1.3800 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1.25 ; Spade Drill Length: Extended Length
| Series | T-A Pro |
| Minimum Drill Diameter (Inch) | 1 |
| Maximum Drill Diameter (Decimal Inch) | 1.3800 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1.25 |
| Spade Drill Length | Extended Length |
| Overall Length (Decimal Inch) | 21.743 |
| Drill Depth by Diameter Ratio | 15xD |
| Maximum Drill Depth (Decimal Inch) | 17.5650 |
| Flute Type | Straight |
| Body Length (Decimal Inch) | 19.4630 |
| Shank Length (Decimal Inch) | 2.2800 |
| Through Coolant | Through Coolant |
