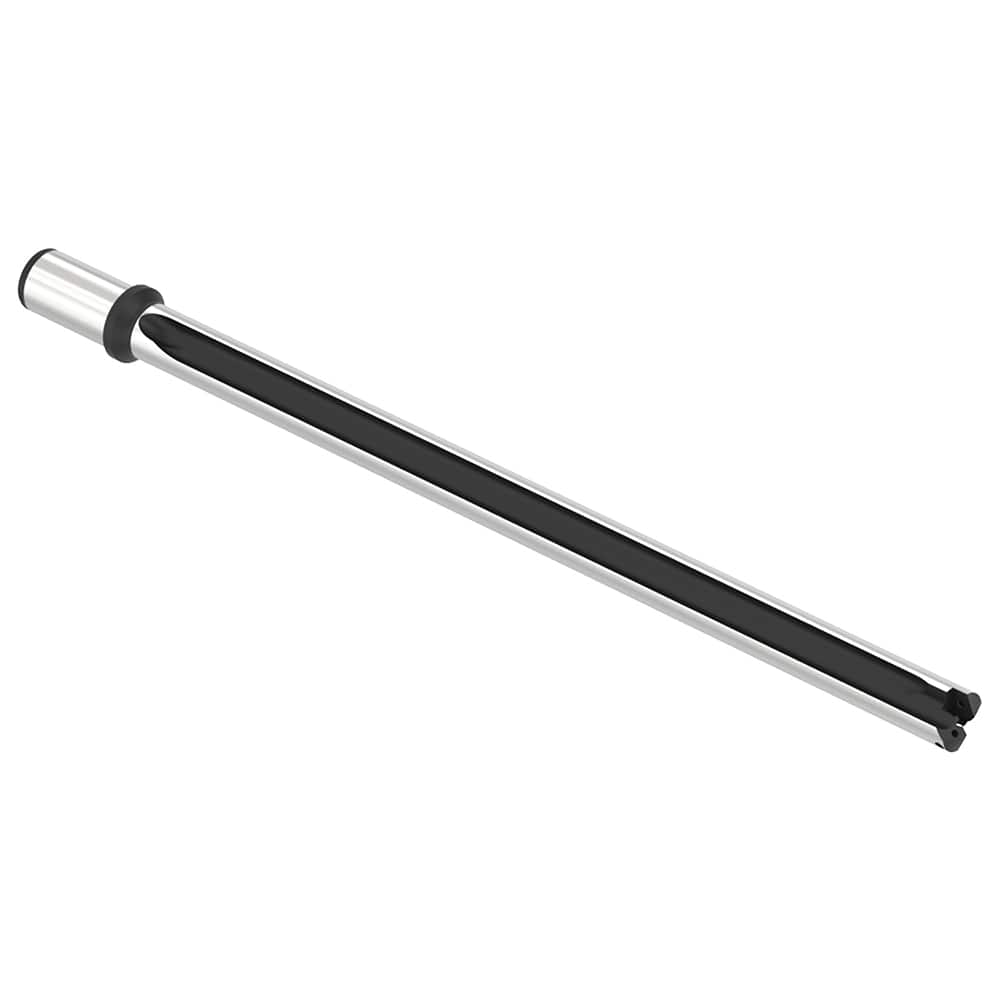

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 28.45 ; Maximum Drill Diameter (mm): 35.07 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Spade Drill Length: Extended Length
Item #: 16720658
Brand: Allied Machine and Engineering
Model #: HTA2C15-32CM
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 28.45 ; Maximum Drill Diameter (mm): 35.07 ; Shank Type: Cylindrical ; Shank Diameter (mm): 32.0000 ; Spade Drill Length: Extended Length
| Series | T-A Pro |
| Minimum Drill Diameter (mm) | 28.45 |
| Maximum Drill Diameter (mm) | 35.07 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.0000 |
| Spade Drill Length | Extended Length |
| Overall Length (mm) | 554.3600 |
| Drill Depth by Diameter Ratio | 15xD |
| Maximum Drill Depth (mm) | 446.15 |
| Flute Type | Straight |
| Body Length (mm) | 494.360 |
| Shank Length (mm) | 59.990 |
| Through Coolant | Through Coolant |
