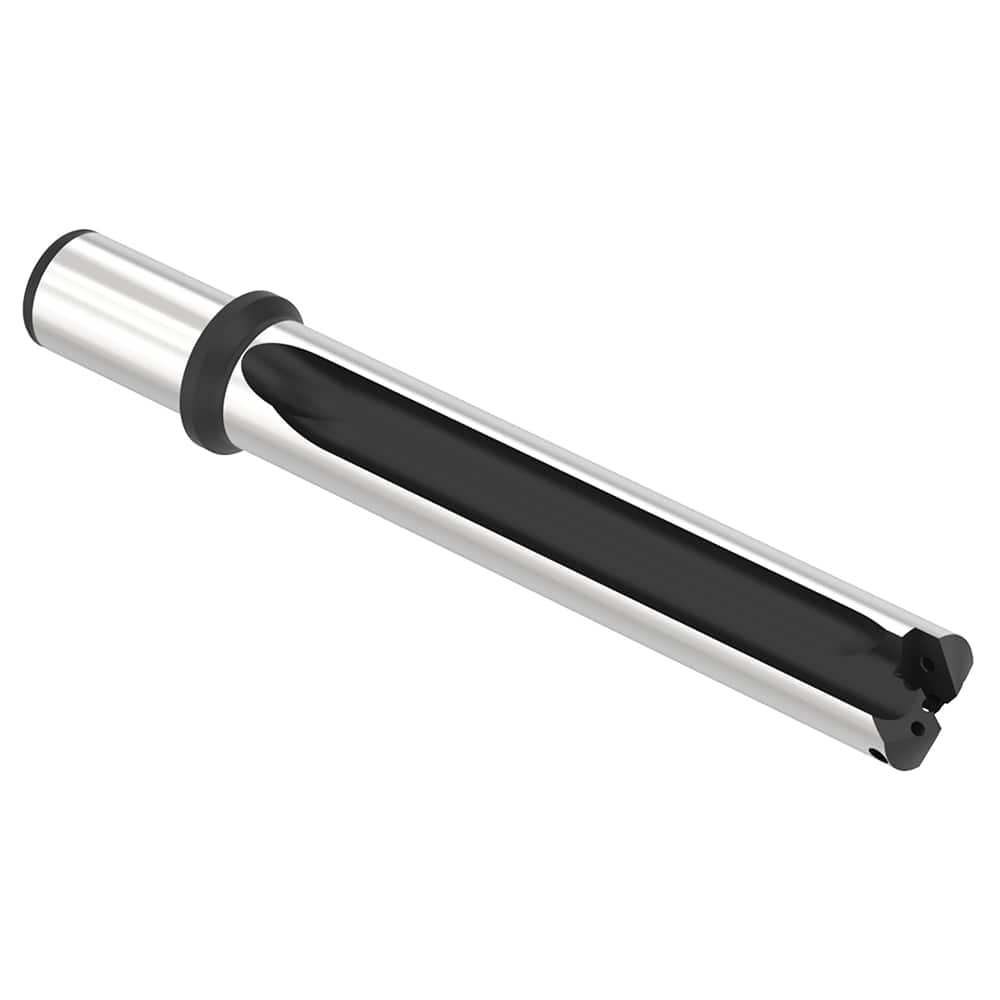

Allied Machine and Engineering - Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 40.99 ; Maximum Drill Diameter (mm): 47.80 ; Shank Type: Cylindrical ; Shank Diameter (mm): 40.0000 ; Spade Drill Length: Standard Length
Item #: 16720005
Brand: Allied Machine and Engineering
Model #: HTA3C05-40CM
Product Specifications
Spade Drills; Series: T-A Pro ; Minimum Drill Diameter (mm): 40.99 ; Maximum Drill Diameter (mm): 47.80 ; Shank Type: Cylindrical ; Shank Diameter (mm): 40.0000 ; Spade Drill Length: Standard Length
| Series | T-A Pro |
| Minimum Drill Diameter (mm) | 40.99 |
| Maximum Drill Diameter (mm) | 47.80 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 40.0000 |
| Spade Drill Length | Standard Length |
| Overall Length (mm) | 332.2500 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 205.49 |
| Flute Type | Straight |
| Body Length (mm) | 262.250 |
| Shank Length (mm) | 70.000 |
| Through Coolant | Through Coolant |
