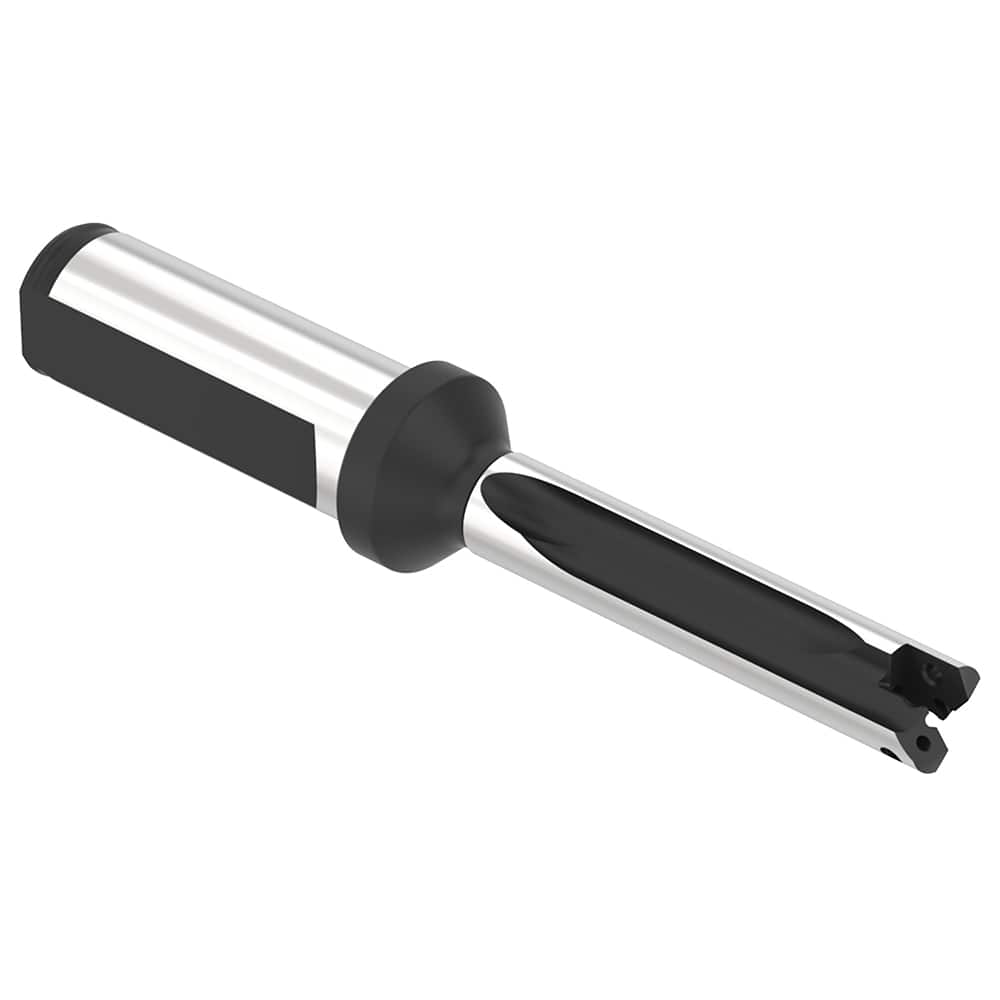

Indexable Spade Drill: 0.55 to 0.695″ Dia, Straight Flute 3/4″ Shank Dia, Flanged Shank, 3.064″ Body Length, 5.094″ OAL, Through Coolant, Series T-A Pro
Item #: 16716375
Brand: Allied Machine and Engineering
Model #: HTA0B03-075F
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.5500 |
| Maximum Drill Diameter (Decimal Inch) | 0.6950 |
| Maximum Drill Depth (Decimal Inch) | 1.8090 |
| Spade Drill Length | Standard |
| Shank Type | Flanged |
| Shank Diameter (Inch) | 3/4 |
| Drill Depth by Diameter Ratio | 3xD |
| Overall Length (Decimal Inch) | 5.0940 |
| Series | T-A Pro |
| Flute Type | Straight |
| Body Length (Decimal Inch) | 3.0640 |
| Shank Length (Decimal Inch) | 2.0300 |
| Coolant Through | Yes |
