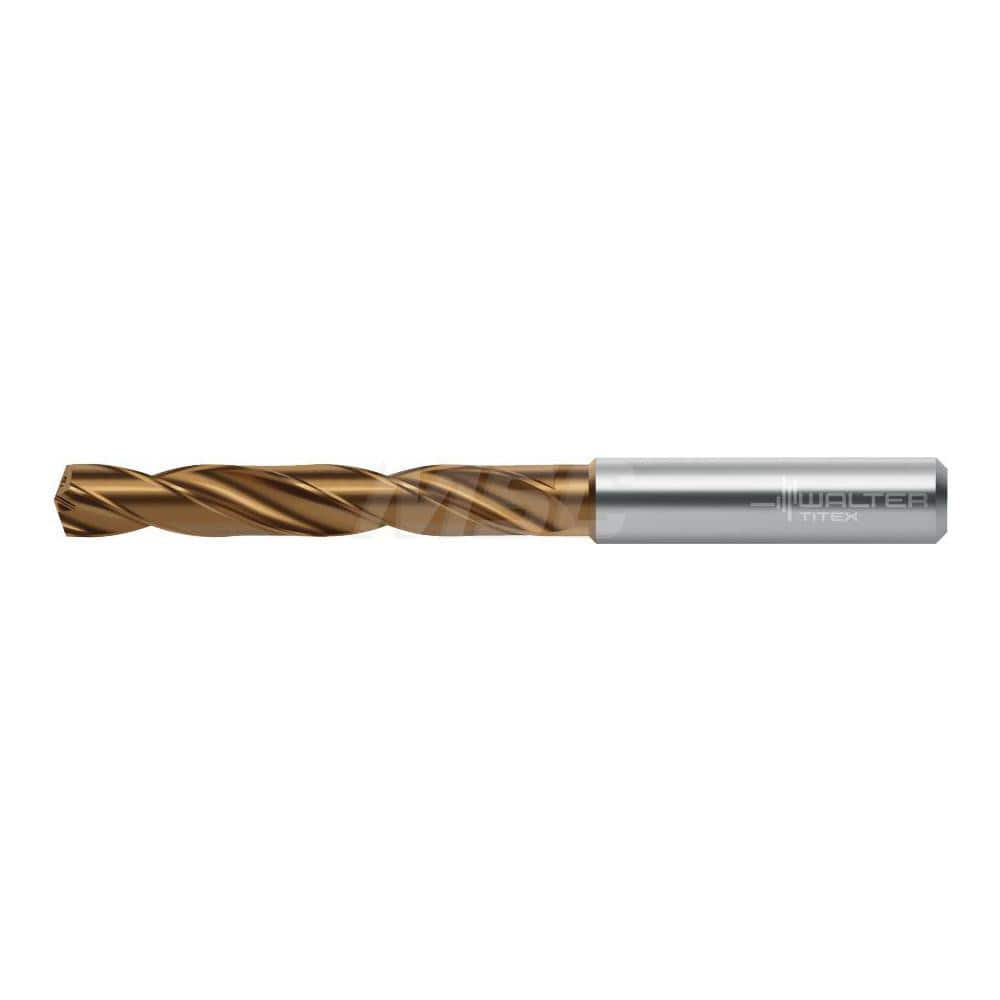

Jobber Length Drill Bit: 0.8661″ Dia, 140 °, Solid Carbide TiSiAlCrN, AlTiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series DC160
Item #: 16563751
Brand: Walter-Titex
Model #: 7377805
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.8661 |
| Drill Bit Size (mm) | 22.00 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiSiAlCrN/AlTiN |
| Drill Point Angle (Degrees) | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 166.00 |
| Flute Length (mm) | 108.00 |
| Series | DC160 |
| Tool Application | Cross Hole; Blind Hole; Inclined Hole Exit; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 25.00 |
| Maximum Drilling Depth (mm) | 86.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2050 |
| Drill Point Length (mm) | 4.00 |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; ANSI |
| Drill Bit Size Range (Decimal Inch) | 0.6500+ |
| Drill Bit Size Range (mm) | 15.00 |
| Material Grade | WJ30ET |
