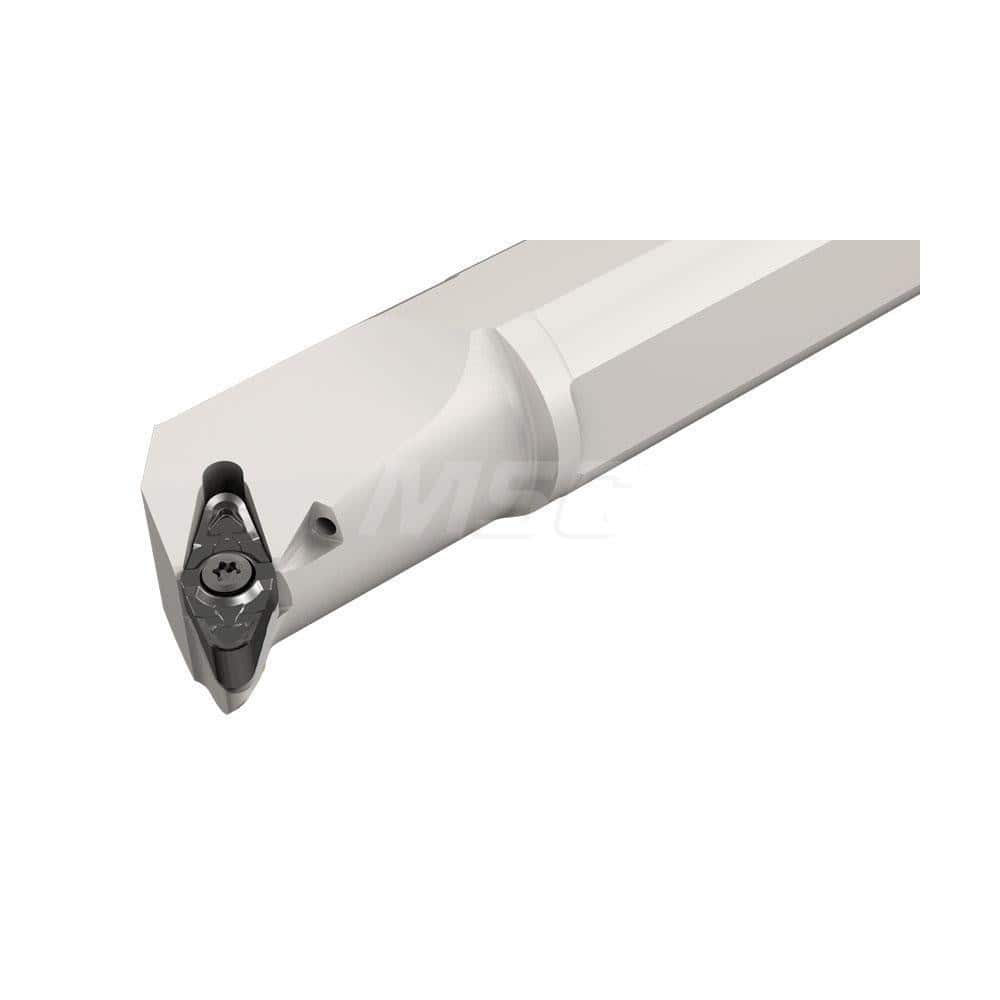

49mm Min Bore, Right Hand A-SVQNR Indexable Boring Bar 348.1mm OAL, 1-1/2″ Shank Diam, Uses VNGU, A-SVQNR Inserts, Through Coolant
Item #: 16420275
Brand: Iscar
Model #: 3336016
Product Specifications
| Minimum Bore Diameter (mm) | 49.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9290 |
| Maximum Bore Depth (Decimal Inch) | 2.3600 |
| Toolholder Style | A-SVQNR |
| Insert Compatibility | VNGU |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 13.7050 |
| Overall Length (mm) | 348.10 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Positive (Radial); Positive (Axial) |
| Cutting Direction | Right Hand |
| Lead Angle | 107.50 |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning |
| Center to Cutting Edge (Decimal Inch) | 0.9210 |
| Standards | ISO 13399 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Bore Diameter (mm) | 152.40 |
| Maximum Bore Diameter (Decimal Inch) | 6.0000 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | Yes |
