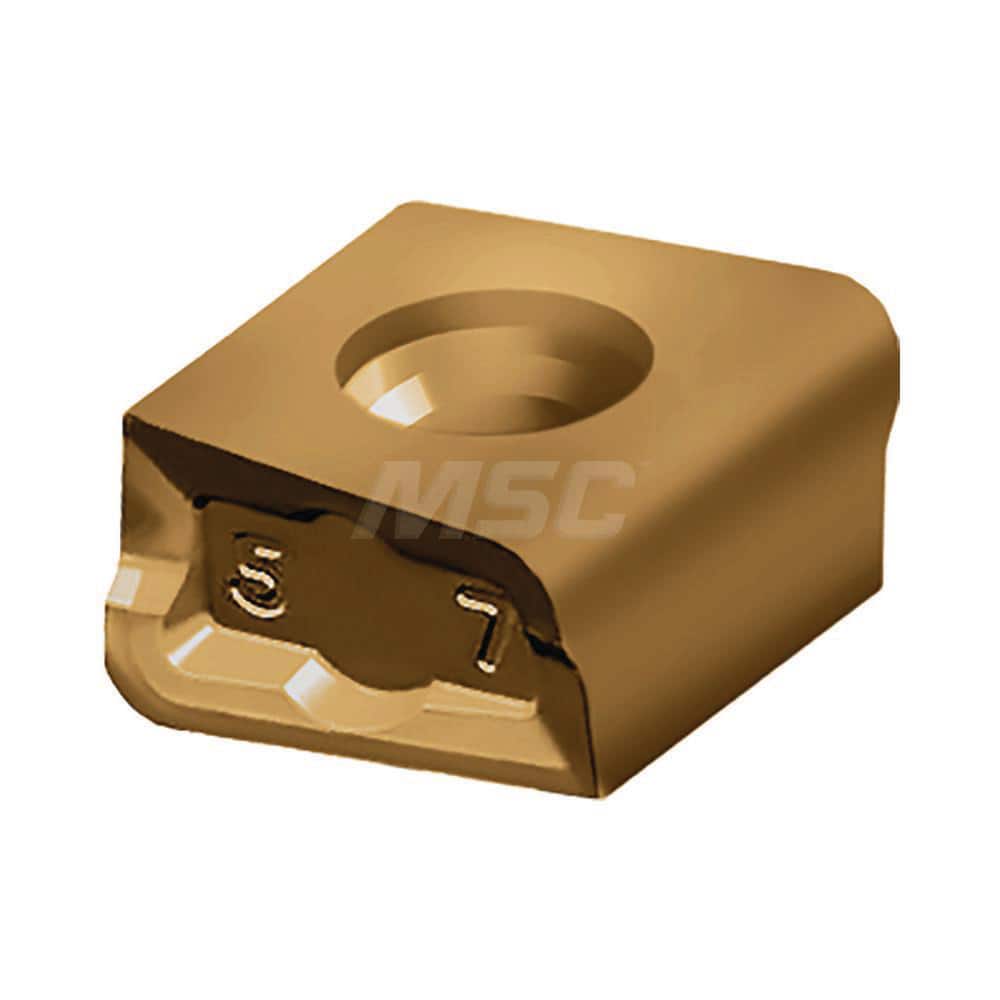

Milling Insert: LNHU100508-F57T WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16280562
Brand: Walter
Model #: 8112868
Product Specifications
| Insert Style | LNHU |
| Insert Size Code | 10 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.2170 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | LNHU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 10.00 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Non-ISO |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | LNHU100508-F57T WSP45G |
| Chip Breaker | F57T |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2170 |
