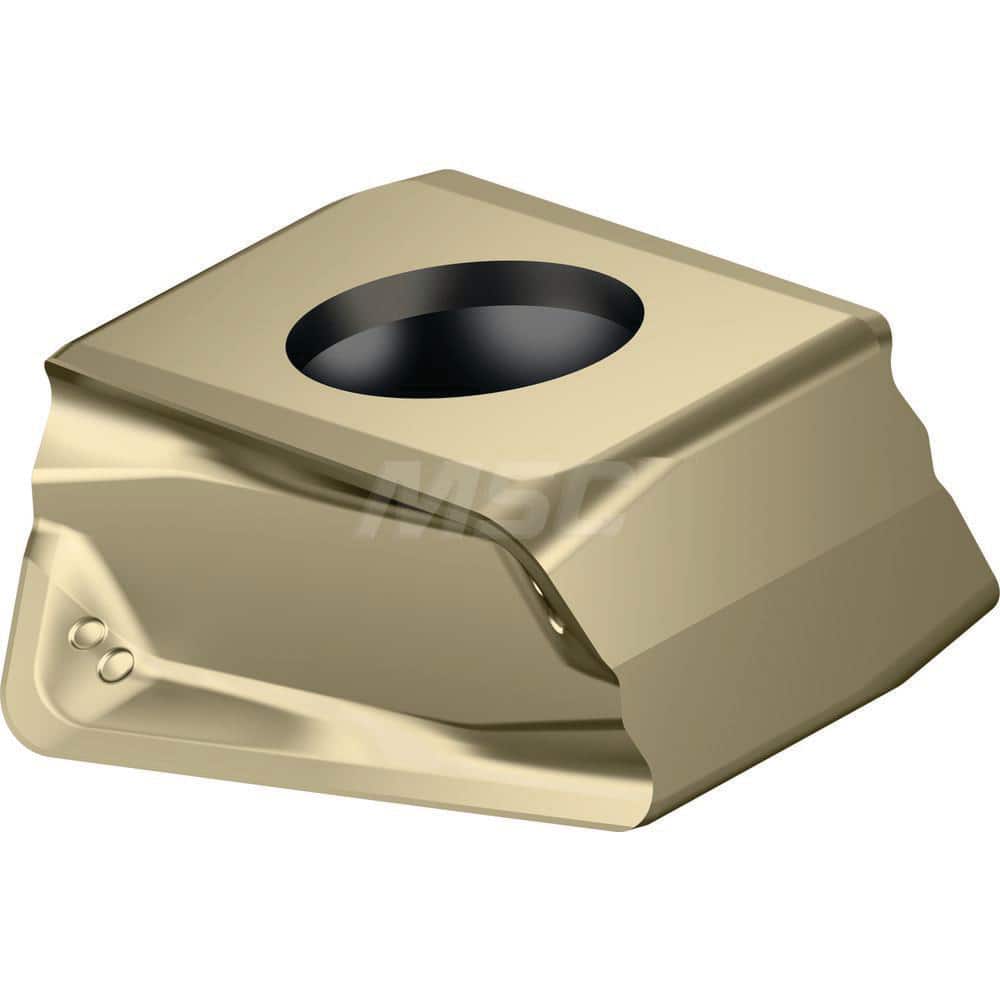

Milling Insert: LNHU160712R-L55T WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16280414
Brand: Walter
Model #: 8112872
Product Specifications
| Insert Style | LNHU |
| Insert Size Code | 16 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.2830 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Series | LNHU |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 16.00 |
| Insert Shape | Rectangle |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | LNHU160712R-L55T WSP45G |
| Chip Breaker | L55T |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2830 |
