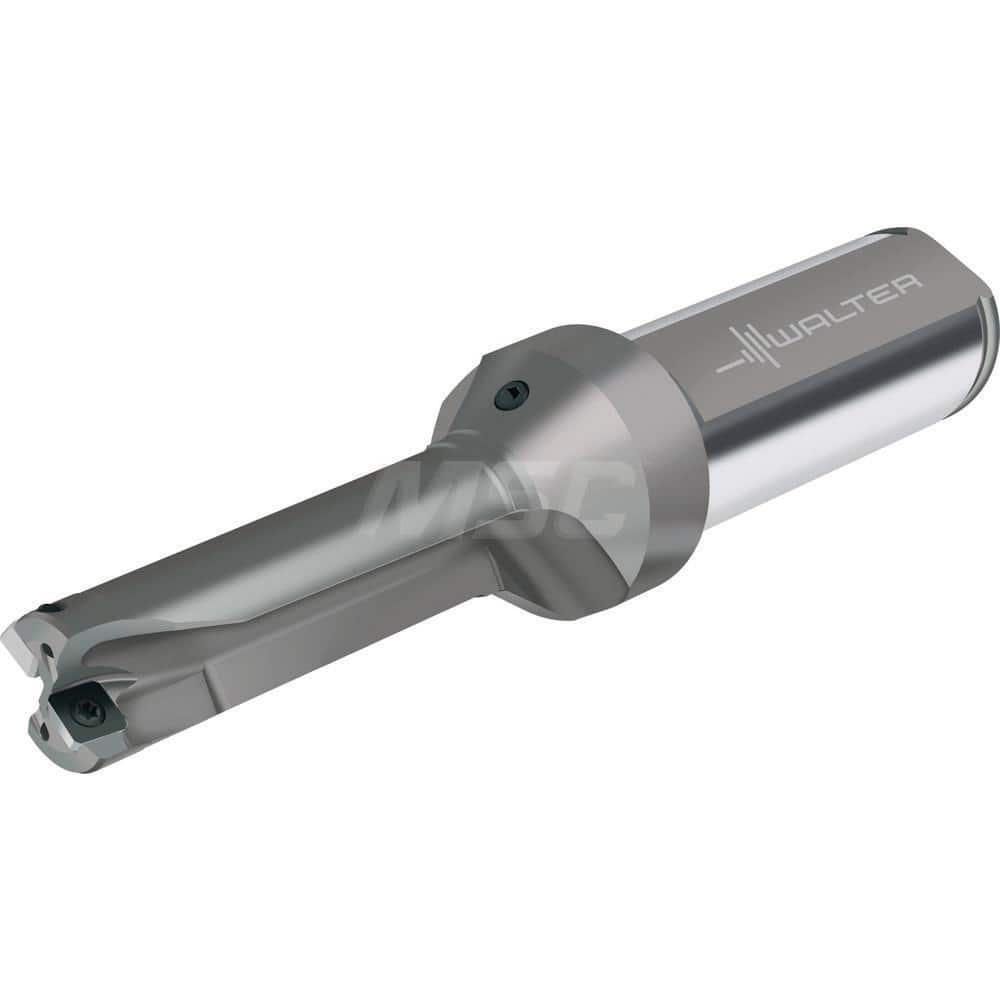

Indexable Insert Drills; Drill Style: D3120; Maximum Drill Diameter (mm): 19.50; Maximum Drill Depth (mm): 59.00; Shank Type: Flatted; Shank Diameter (Inch): 25; Shank Diameter (mm): 25.00; Number of Drill Inserts: 2; Cutting Direction: Right Hand; Tool M
Item #: 16279390
Brand: Walter
Model #: 8087969
Product Specifications
| Drill Style | D3120 |
| Maximum Drill Diameter (mm) | 19.50 |
| Maximum Drill Depth (mm) | 59.00 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 25 |
| Shank Diameter (mm) | 25.00 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Compatible Insert Style | P284 |
| Compatible Insert Size Code | 1N |
| Drill Depth by Diameter Ratio | 3xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 139.50 |
| Series | D3120 |
| Flute Length (mm) | 59.00 |
| Body Length | 69.50 |
| Shank Length (mm) | 70.00 |
| Tool Application | Drilling |
| Coolant Through | Yes |
