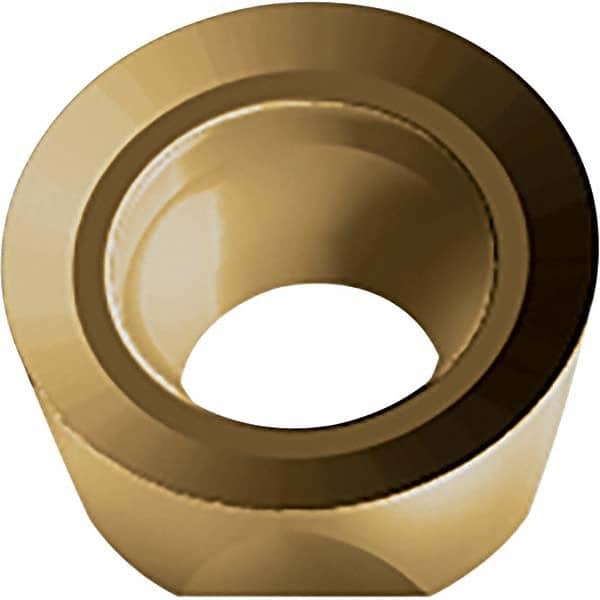

ROMX0803M0-D57 WKP35G Carbide Milling Insert TiAlN/TiN Finish, 1/8″ Thick
Item #: 16278939
Brand: Walter
Model #: 8132877
Product Specifications
| Insert Style | ROMX |
| Insert Size Code | 08 |
| Insert Size | 0803M0 |
| Insert Material | Solid Carbide |
| Material Grade | P35; K35 |
| Manufacturer Grade | WKP35S |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Inscribed Circle (mm) | 8.00 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 4.00 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | ROMX |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (mm) | 4.00 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 8.00 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | ROMX0803M0-D57 WKP35G |
| Iso Code | ROMX0803M0-D57 WKP35G |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | ROMX0803M0-D57 WKP35G |
| Chip Breaker | D57 |
| Shape | Round |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
 | |
| MSC Part # | 16278939 |
| Mfr Part # | 8132877 |
| Country of OriginCountry of Origin is subject to change | Germany |
