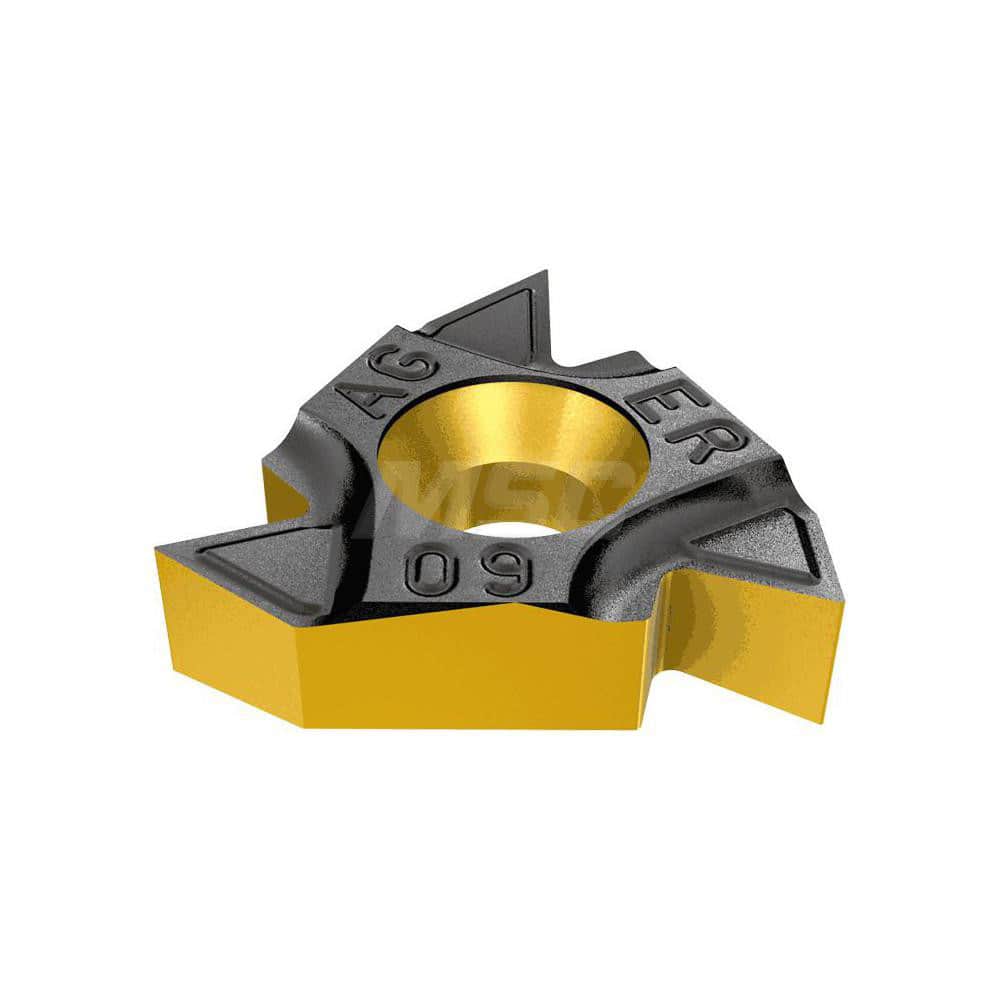

Laydown Threading Inserts; Insert Style: 22ER; Insert Size Code: 22; Insert Material: Solid Carbide; Manufacturer Grade: IC08; Threads Per Inch: 5-7; Thread Type: External; Insert Hand: Right Hand; Included Angle: 60; Chipbreaker: Z; Series: ER; Inscribed
Item #: 16179822
Brand: Iscar
Model #: 3409727
Product Specifications
| Insert Style | 22ER |
| Insert Size Code | 22 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC08 |
| Thread Type | External |
| Insert Hand | Right Hand |
| Included Angle | 60 |
| Chipbreaker | Z |
| Series | ER |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0165 |
| Teeth Per Inch | 5.00 to 7.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Coating/Finish | Uncoated |
