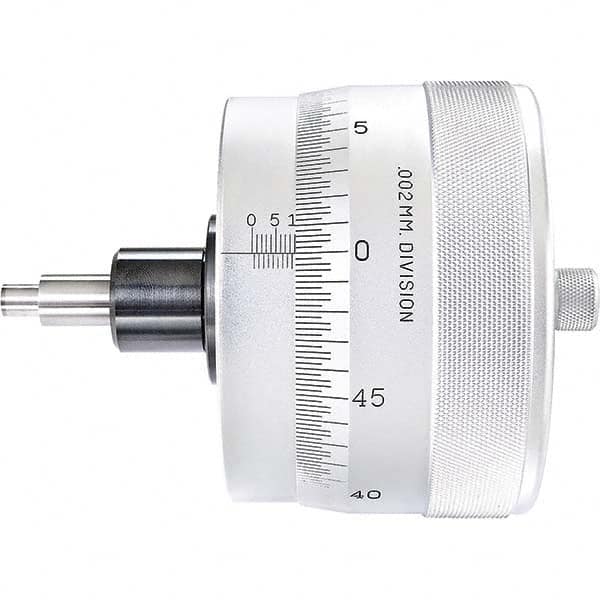

Starrett - 25mm, 4-1/16 Inch Plain Thimble, 0.3118 Inch Diameter x 1-7/16 Inch Long Spindle, Mechanical Micrometer Head
Item #: 57578981
Brand: Starrett
Model #: 67132
| Product Specifications | |
|---|---|
| Minimum Measurement (mm) | 0.00 |
| Maximum Measurement (mm) | 25.00 |
| Thimble Diameter (mm) | 103.19 |
| Thimble Diameter (Inch) | 4-1/16 |
| Thimble Diameter (Decimal Inch) | 4.0625 |
| Digital Counter | No |
| Spindle Diameter (mm) | 7.92 |
| Spindle Diameter (Decimal Inch) | 0.3118 |
| Spindle Length (mm) | 36.51 |
| Spindle Length (Inch) | 1-7/16 |
| Spindle Length (Decimal Inch) | 1.4375 |
| Overall Length (mm) | 139.70 |
| Overall Length (Inch) | 5-1/2 |
| Overall Length (Decimal Inch) | 5.5000 |
| Graduation (mm) | 0.0020 |
| Stem Diameter (Decimal Inch) | 1.0000 |
| Stem Diameter (mm) | 25.40 |
| Spindle Type | Flat |
| Rotating Spindle | Yes |
| Accuracy (mm) | 0.0013 |
| Thimble Type | Plain |
| Stem Length (mm) | 22.23 |
| Stem Length (Inch) | 7/8 |
| Stem Length (Decimal Inch) | 0.8750 |
| Reverse Reading | No |
| Clamp Nut Supplied | No |
| Measuring Face Material | Carbide |
| Finish/Coating | Satin Chrome |
| Number of Extension Rods | 0 |
