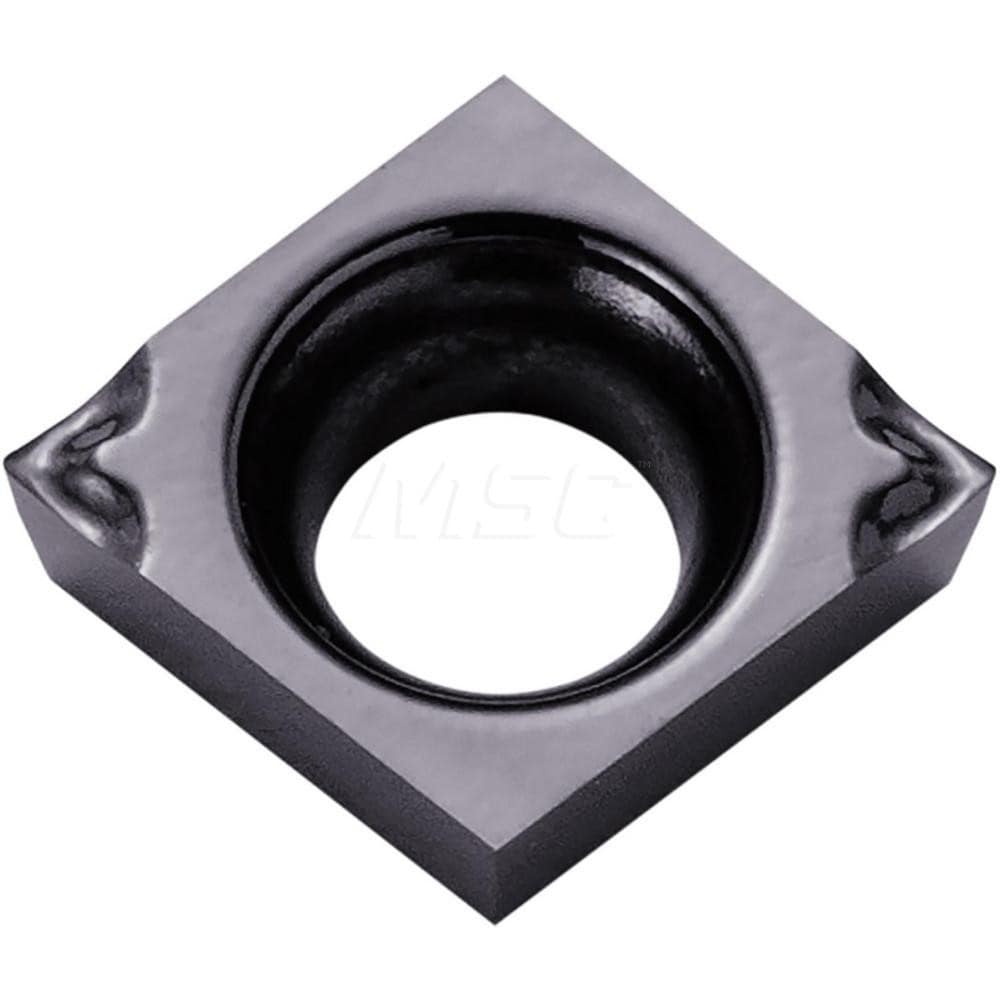

Boring Inserts; Insert Style: CCGT; Insert Size Code: 110902; Insert Material: Carbide; Material Grade: S20, S30, M40, M30; Manufacturer Grade: PR1535
Item #: 18248716
Brand: Kyocera
Model #: TLC01380
Product Specifications
| Insert Style | CCGT |
| Insert Size Code | 110902 |
| Insert Material | Carbide |
| Material Grade | S20; S30; M40; M30 |
| Manufacturer Grade | PR1535 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Hole Diameter (Decimal Inch) | 0.0748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (Inch) | 1/256 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | CF |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Superalloys |
| Primary Workpiece Material Code | S; M |
| Iso Code | CCGT030101MP-CF |
| Rake Angle | 20 |
| Manufacturers Catalog Number | TLC01380 |
| Length (Decimal Inch - 4 Decimals) | 0.1380 |
| Width (Decimal Inch - 4 Decimals) | 0.138 |
| Coating/Finish | MEGACOAT NANO |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0460 |
| Insert Style | CCGT |
| Insert Size Code | 110902 |
| Insert Material | Carbide |
| Material Grade | S20; S30; M40; M30 |
| Manufacturer Grade | PR1535 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Hole Diameter (Decimal Inch) | 0.0748 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (Inch) | 1/256 |
| Relief Angle | 7 |
| Rake | Positive |
| Chipbreaker | CF |
| Series | ISOI |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Superalloys |
| Primary Workpiece Material Code | S; M |
| Iso Code | CCGT030101MP-CF |
| Rake Angle | 20 |
| Manufacturers Catalog Number | TLC01380 |
| Length (Decimal Inch - 4 Decimals) | 0.1380 |
| Width (Decimal Inch - 4 Decimals) | 0.138 |
| Coating/Finish | MEGACOAT NANO |
| UNSPSC Code | 23242107 |
| Maximum Depth of Cut (Decimal Inch) | 0.0460 |
| MSC Part # | 18248716 |
| Mfr Part # | TLC01380 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
