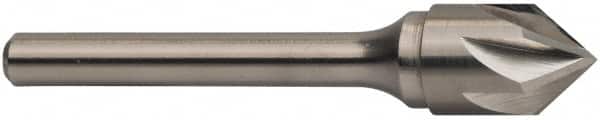

Keo - 5 Piece, 1/4 to 3/4" Head Diam, 100° Included Angle, Single End Countersink Set
Item #: 44851111
Brand: Keo
Model #: 55823--TIALN
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Minimum Head Diameter (Inch) | 1/4 |
| Minimum Head Diameter (Decimal Inch) | 0.2500 |
| Maximum Head Diameter (Inch) | 3/4 |
| Maximum Head Diameter (Decimal Inch) | 0.7500 |
| Minimum Included Angle | 100 |
| Maximum Included Angle | 100 |
| Number of Flutes | 6 |
| Countersink Material | Solid Carbide |
| Number of Pieces | 5 |
| Countersink Finish/Coating | TiAlN |
| Set Includes | (5) Countersinks |
| Countersink Application | Chamfering; Countersinking; Deburring |
| Storage Unit Type | Case |
| Storage Unit Material | Plastic |
| Minimum Shank Diameter (Inch) | 1/4 |
| Minimum Shank Diameter (mm) | 6.35 |
| Minimum Shank Diameter (Decimal Inch) | 0.2500 |
| Maximum Shank Diameter (Decimal Inch) | 0.3750 |
| Maximum Shank Diameter (Inch) | 3/8 |
| Maximum Overall Length (Decimal Inch) | 2.75 |
| Maximum Overall Length (Inch) | 2-3/4 |
| Minimum Overall Length (Inch) | 2 |
| Minimum Overall Length (Decimal Inch) | 2.00 |
| PSC Code | 5133 |
| End Type | Single |
