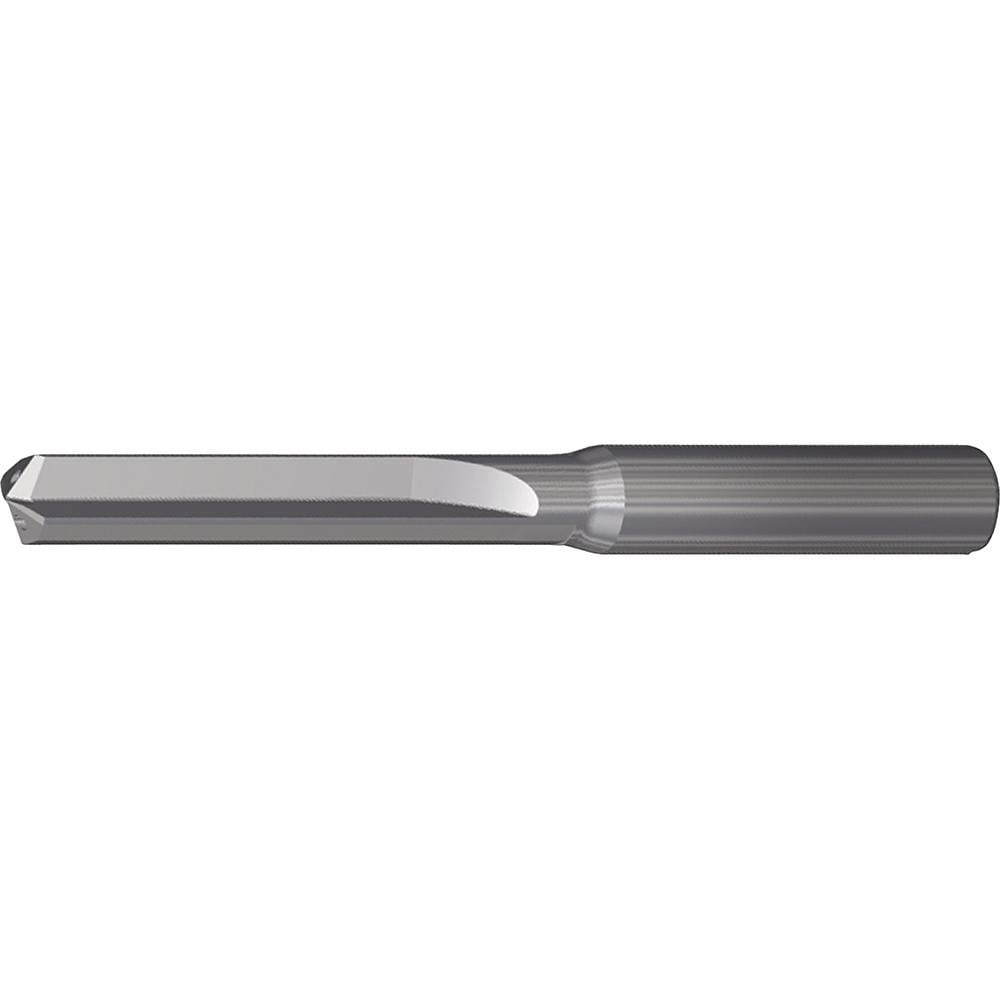

Brand: Widia / Part #: 4157993
Item #: 99826349
Brand: Widia
Model #: 4157993
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1660 |
| Drill Bit Size (Wire) | #19 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Uncoated |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Straight |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (Decimal Inch) | 2.9134 |
| Flute Length (Decimal Inch) | 1.4173 |
| Series | TDG532 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 7 |
| Flute By Diameter Ratio | 7xD |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Shank Length (Decimal Inch) | 1.4173 |
| Number of Flats | 2 |
| Drill Point Length (Decimal Inch) | 0.0387 |
| Drill Bit Diameter Tolerance | 0.000000 to 0.000500 in |
| Tool Performance | General Purpose |
| Double Margin | No |
| Drill Bit Grade | WN10HD |
| Material Grade | WN10HD |
