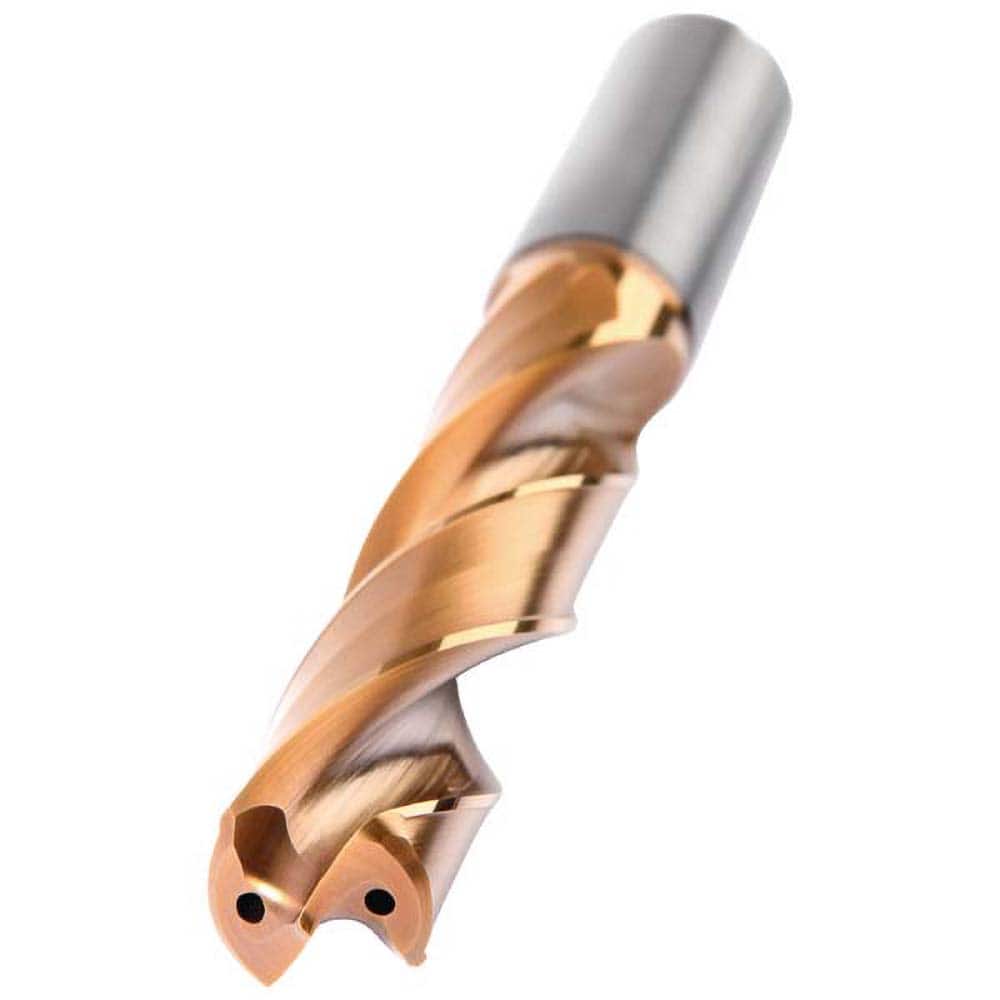

Jobber Length Drill Bit: 0.4063″ Dia, 143 °, Solid Carbide AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 15662778
Brand: Kennametal
Model #: 6783515
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4063 |
| Drill Bit Size (Inch) | 13/32 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 143 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 111.00 |
| Flute Length (mm) | 66.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 7/16 |
| Maximum Drilling Depth (Decimal Inch) | 2.0906 |
| Shank Length (Decimal Inch) | 1.6732 |
| Drill Point Length (Decimal Inch) | 0.1193 |
| Drill Bit Grade | KCK10A |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
