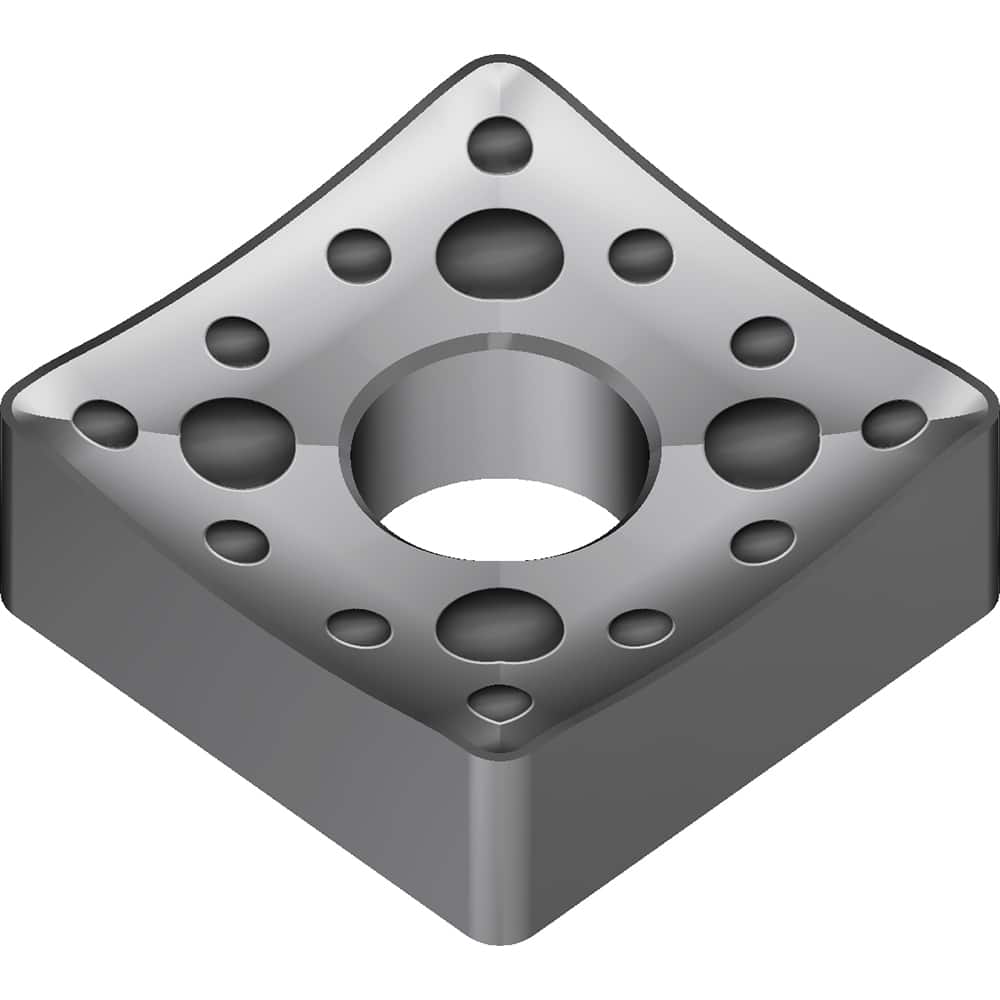

SNMM856ENP AC6030M Carbide Turning Insert Absotech Finish, 1″ Long, 1″ Inscribed Circle, 0.0945″ Corner Radius, 0.3126″ Thick, Series AC6000M
Item #: 15532864
Brand: Sumitomo
Model #: 196C434
Product Specifications
| Insert Style | SNMM |
| Insert Shape Code | S |
| Insert Size Code | 856 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC6030M |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.3126 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | AC6000M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Inch) | 1 |
| Insert Length (Decimal Inch) | 1.0000 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | SNMM250724N-MP |
| Manufacturers Catalog Number | SNMM856EHP-AC6030M |
| Material Grade | M30; M35 |
| Chip Breaker | M |
| Coating/Finish | Absotech |
