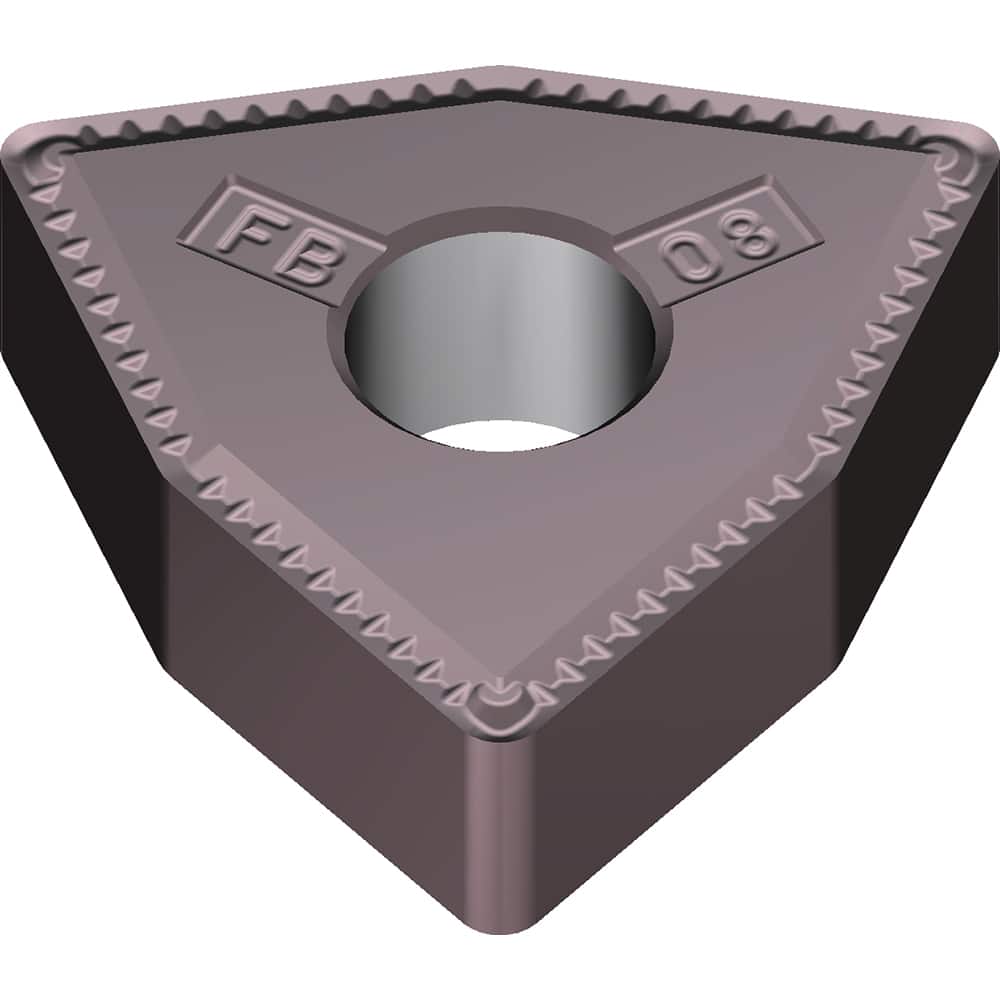

WNMG331EFB AC6040M Carbide Turning Insert Absotech Finish, 0.2559″ Long, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, Series AC6000M
Item #: 15531536
Brand: Sumitomo
Model #: 196DCVG
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 331 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC6040M |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | AC6000M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.2559 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | WNMG060404N-FB |
| Manufacturers Catalog Number | WNMG331EFB-AC6040M |
| Material Grade | M40; M30 |
| Chip Breaker | EFB |
| Coating/Finish | Absotech |
