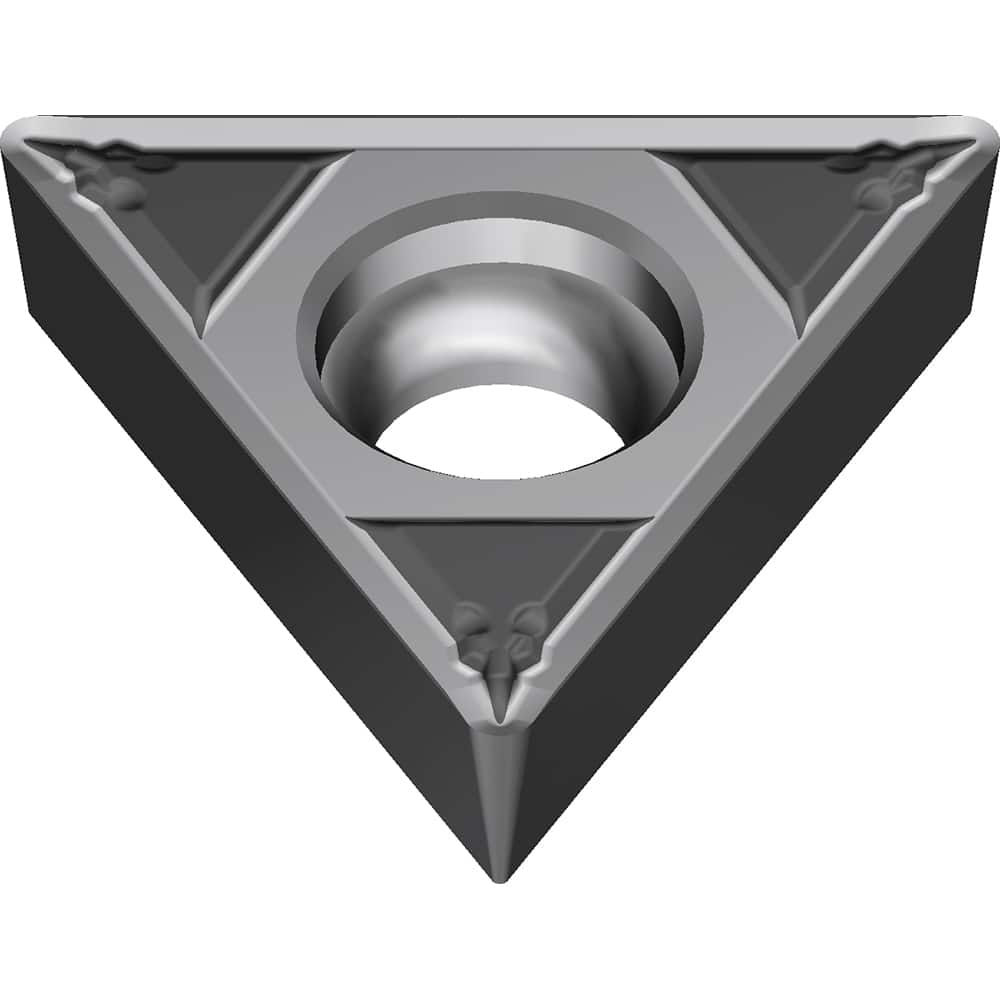

TPMT1.81.51ELB AC6030M Carbide Turning Insert Absotech Finish, 0.378″ Long, 5.56mm Inscribed Circle, 0.0157″ Corner Radius, 0.0937″ Thick, Series AC6000M
Item #: 15530314
Brand: Sumitomo
Model #: 196CCLV
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 1.81.51 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC6030M |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC6000M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3780 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | TPMT090204N-LB |
| Manufacturers Catalog Number | TPMT1.81.51ELB-AC6030M |
| Material Grade | M25; M30; M35 |
| Chip Breaker | ELB |
| Coating/Finish | Absotech |
