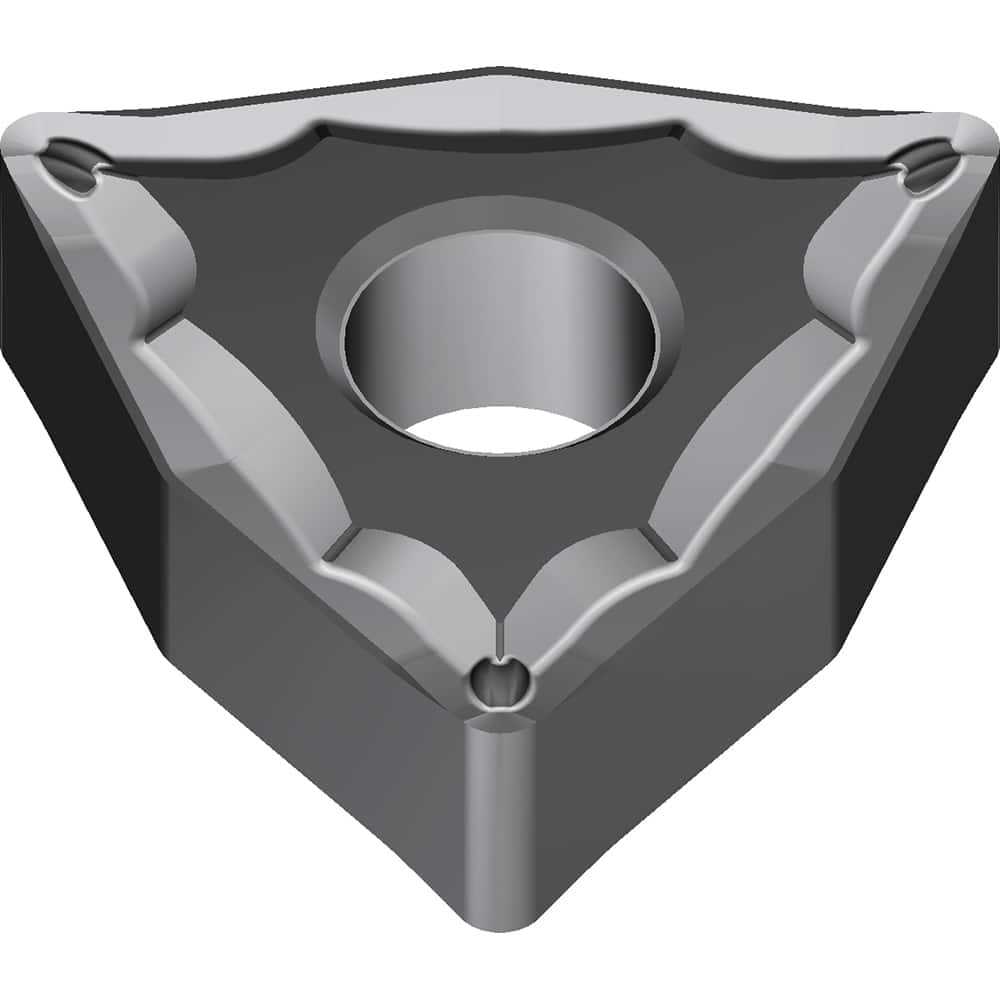

WNMG333ESU AC6030M Carbide Turning Insert Absotech Finish, 0.2559″ Long, 3/8″ Inscribed Circle, 0.0472″ Corner Radius, 0.1874″ Thick, Series AC6000M
Item #: 15530207
Brand: Sumitomo
Model #: 196CCRH
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 333 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC6030M |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | AC6000M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.2559 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | WNMG060412N-SU |
| Manufacturers Catalog Number | WNMG333ESU-AC6030M |
| Material Grade | M25; M30; M35 |
| Chip Breaker | ESU |
| Coating/Finish | Absotech |
