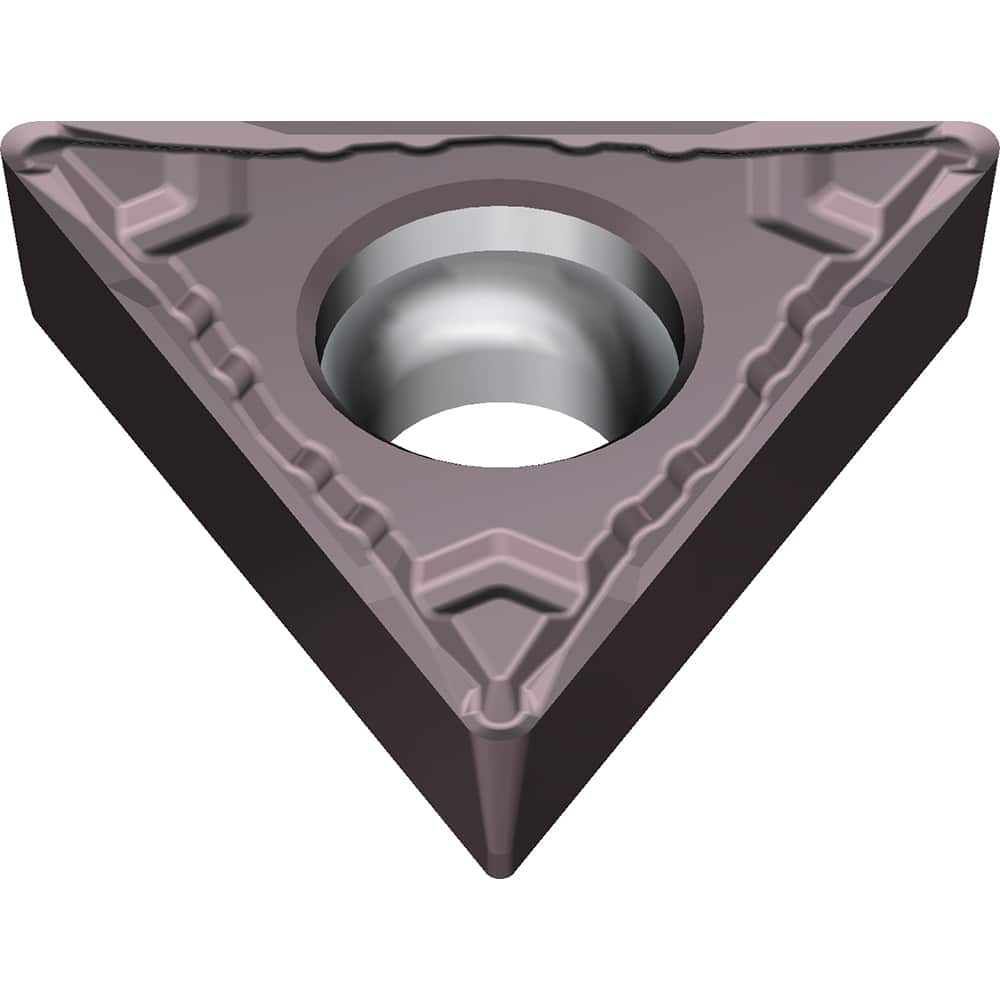

TPMM220.5ELU AC6040M Carbide Turning Insert Absotech Finish, 0.4331″ Long, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 0.1252″ Thick, Series AC6000M
Item #: 15529118
Brand: Sumitomo
Model #: 196DBWY
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 220.5 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC6040M |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC6000M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | TPMT110302N-LU |
| Manufacturers Catalog Number | TPMT220.5ELU-AC6040M |
| Material Grade | M25; M40; M30 |
| Chip Breaker | ELU |
| Coating/Finish | Absotech |
