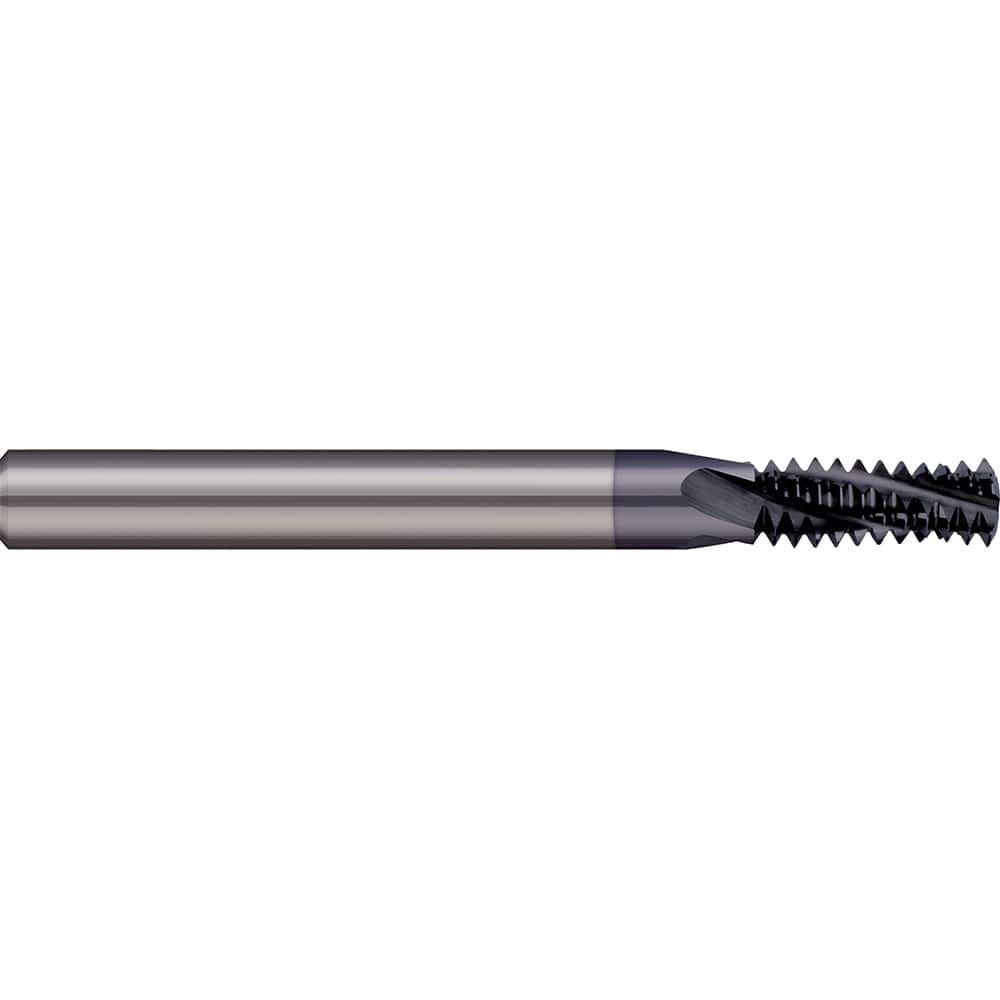

Micro 100 - M18x1.50 Internal/External 1.5mm Pitch 12mm Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 15300700
Brand: Micro 100
Model #: TMM-180150X
Product Specifications
| Pitch (mm) | 1.50 |
| Material | Solid Carbide |
| Thread Size (mm) | M18x1.50 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Number of Flutes | 4 |
| Cutting Diameter (mm) | 11.94 |
| Length of Cut (Decimal Inch) | 1.2598 |
| Length of Cut (mm) | 32.0000 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter (mm) | 18 |
| Overall Length (Decimal Inch) | 3.93700 |
| Overall Length (mm) | 100.0000 |
