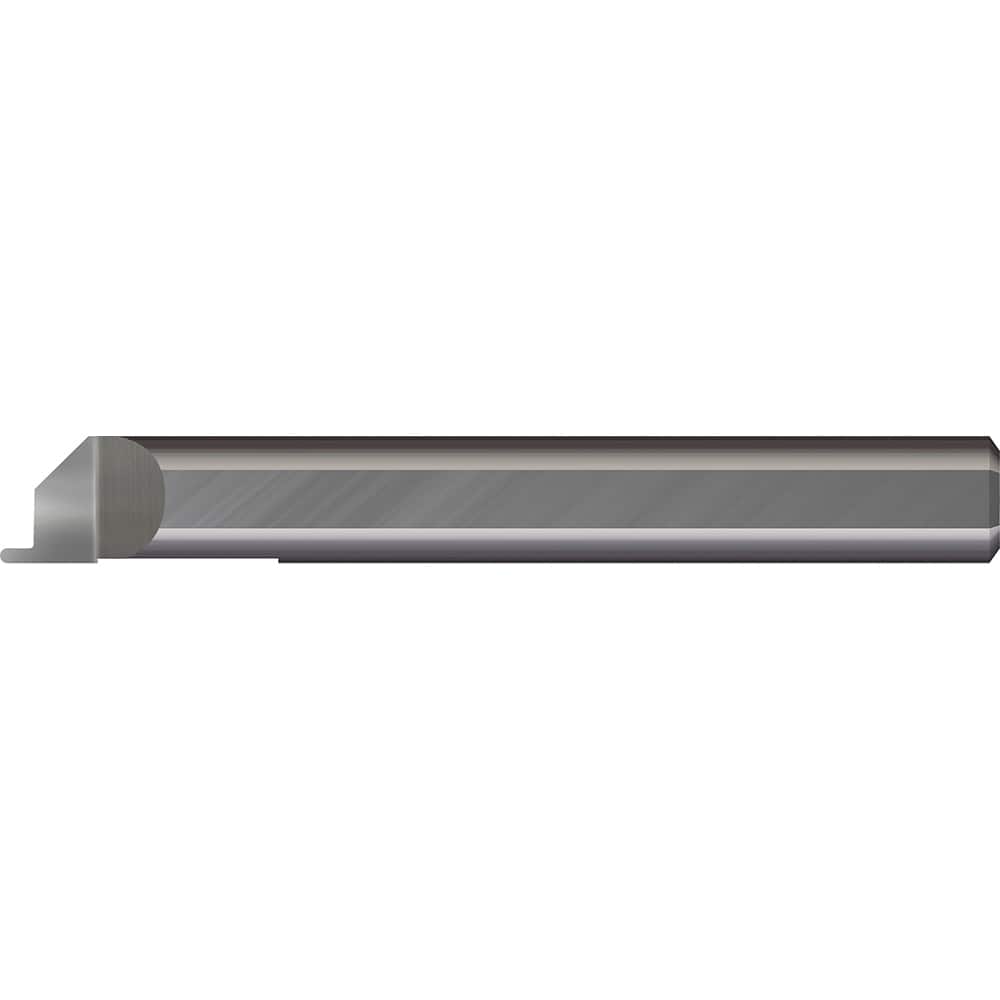

Micro 100 - Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.1250 ; Shank Diameter (Inch): 1/8 ; Groove Width (Decimal Inch): 0.0300 ; Projection (Decimal Inch): 0.0500
Item #: 15284359
Brand: Micro 100
Model #: FGF-125-030-050
Product Specifications
Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.1250 ; Shank Diameter (Inch): 1/8 ; Groove Width (Decimal Inch): 0.0300 ; Projection (Decimal Inch): 0.0500
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Groove Width (Decimal Inch) | 0.0300 |
| Projection (Decimal Inch) | 0.0500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1250 |
| Maximum Hole Depth (Decimal Inch) | 0.3750 |
| Maximum Hole Depth (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Finish/Coating | Uncoated |
| Radius (Decimal Inch) | 0.0150 |
