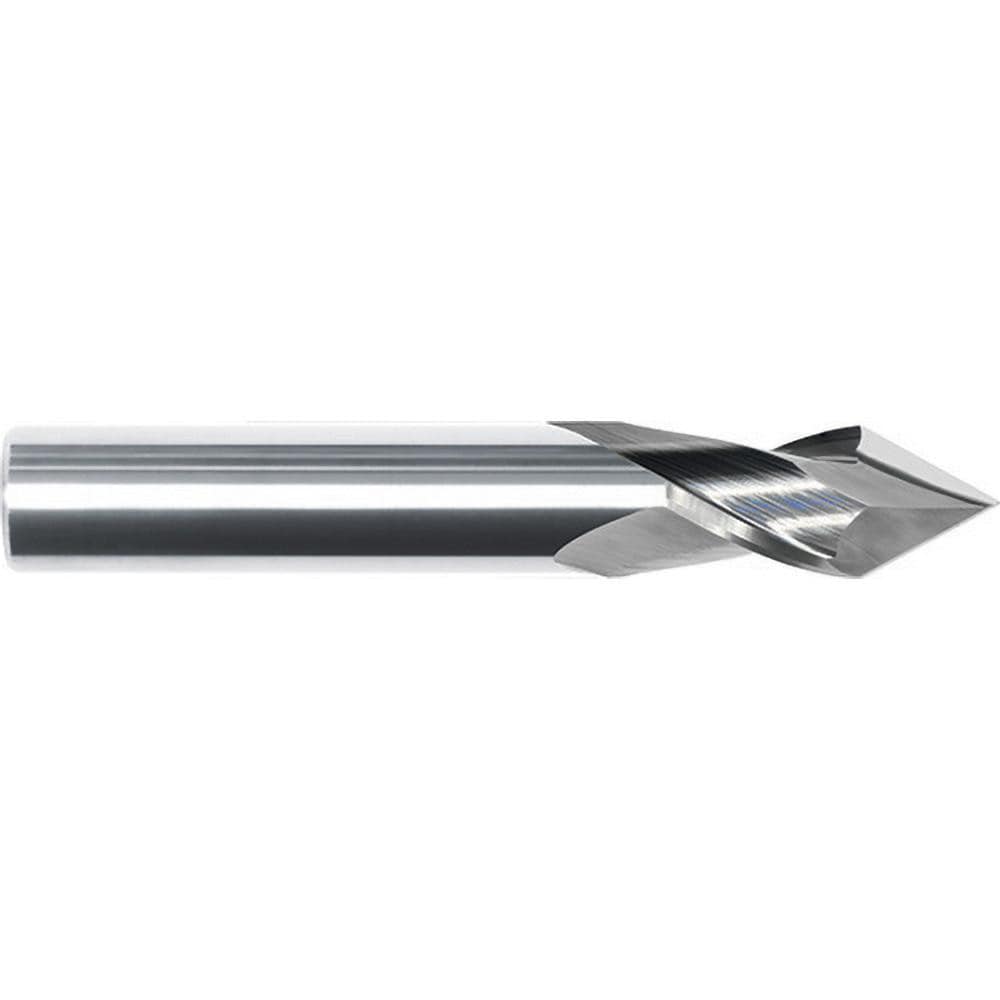

Drill Mills; Mill Diameter (Inch): 1/8; Mill Diameter (Decimal Inch): 0.1250; Length of Cut (Inch): 5/8; Number Of Flutes: 4; End Mill Material: Solid Carbide; Shank Diameter (Inch): 1/8
Item #: 08630667
Brand: Internal Tool
Model #: 49-1000
Product Specifications
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Length of Cut (Inch) | 5/8 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Helix Angle | 30 |
| Point Angle | 120 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Length (Inch) | 2 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Primary Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 49 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Coating/Finish | Natural |
| UNSPSC Code | 23241600 |
