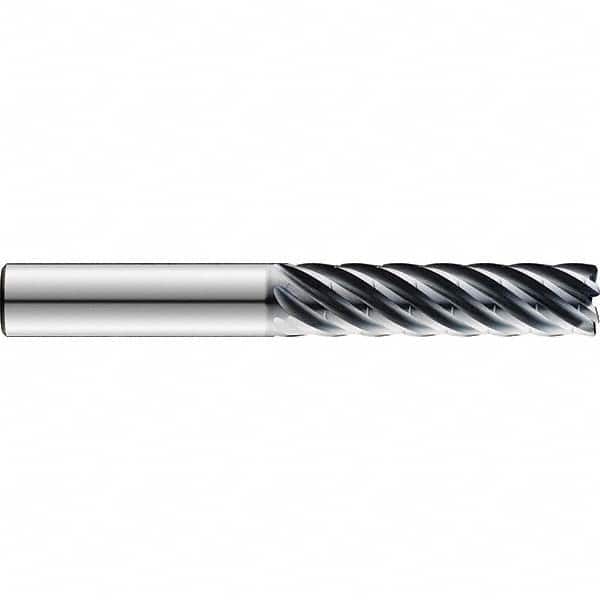

Corner Radius End Mill: 7 Flutes, Solid Carbide 37 ° Helix, TiN Coated, Corner Radius End, Series 77
Item #: 15170137
Brand: SGS
Model #: 74594
Product Specifications
| Mill Diameter (mm) | 25.00 |
| Corner Radius (mm) | 2.00 |
| Length of Cut (mm) | 100.00 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Extra Long |
| Flute Type | Spiral |
| Helix Angle | 37 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 25.0000 |
| Overall Length (mm) | 170.00 |
| Minimum Helix Angle | 37.00 |
| Maximum Helix Angle | 37.00 |
| Corner Radius Tolerance | +0.00000 to -0.05000 mm |
| Mill Diameter Tolerance | +0.000000 to -0.050000 mm |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | 0.0620 to -0.0620 in; 0.0620 to -0.0620 mm |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 77 |
| Product Service Code | 3445 |
| Single Or Double End | Single |
| Coating/Finish | TiN |
