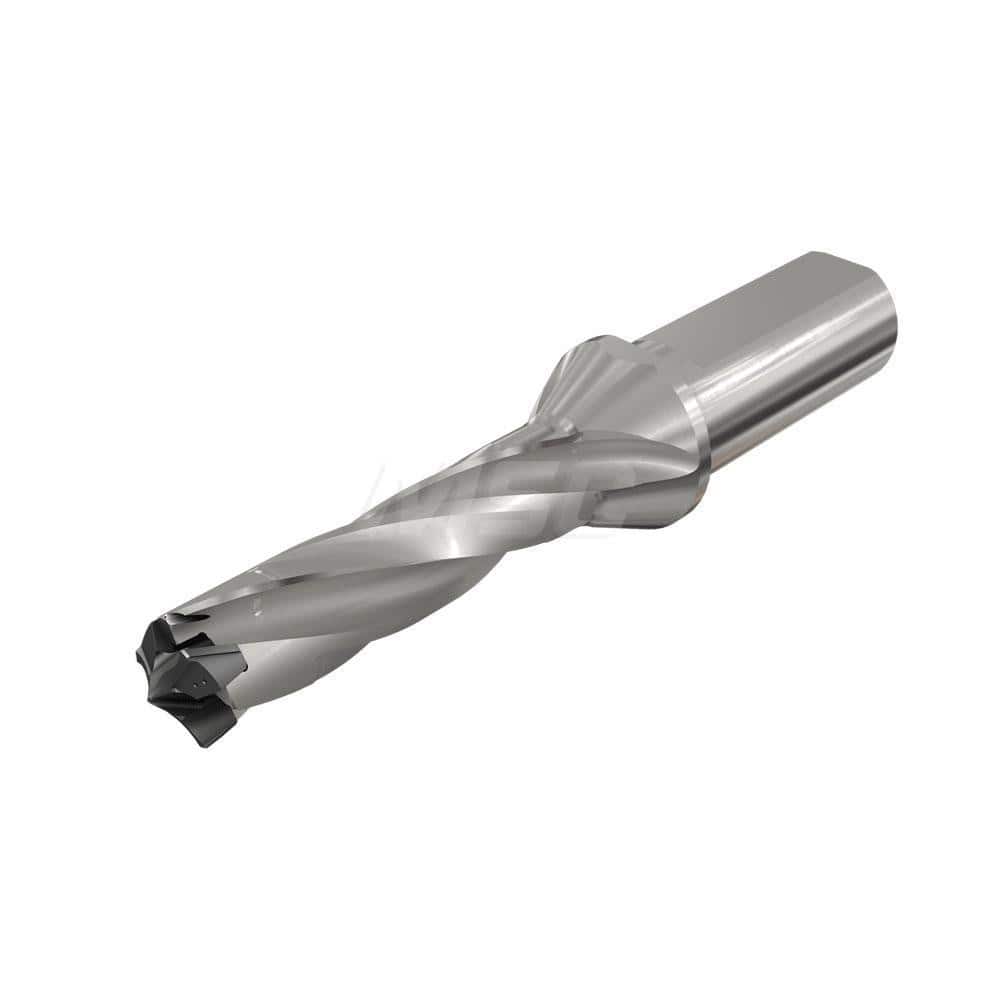

Replaceable Tip Drill: 16 to 16.9 mm Drill Dia, 51.9 mm Max Depth, 20 mm Weldon Flat Shank Uses H4P Inserts, Seat Size 16, 5.1705″ OAL, Through Coolant
Item #: 15111446
Brand: Iscar
Model #: 3335699
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Minimum Drill Diameter (mm) | 16.00 |
| Maximum Drill Diameter (mm) | 16.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6654 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 51.90 |
| Maximum Drill Depth (Decimal Inch) | 2.0433 |
| Shank Type | Weldon Flat |
| Insert Style | H4P |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Seat Size | 16 |
| Shank Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | H4P |
| Compatible Insert Size Code | 160 |
| Overall Length (mm) | 131.33 |
| Overall Length (Decimal Inch) | 5.1705 |
| Series | LogIQ3Cham |
| Toolholder Style | D3N |
| Body Length (Decimal Inch) | 3.2008 |
| Body Length | 81.30 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Tip Length (mm) | 3.46 |
| Tip Length (Decimal Inch) | 0.1362 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
