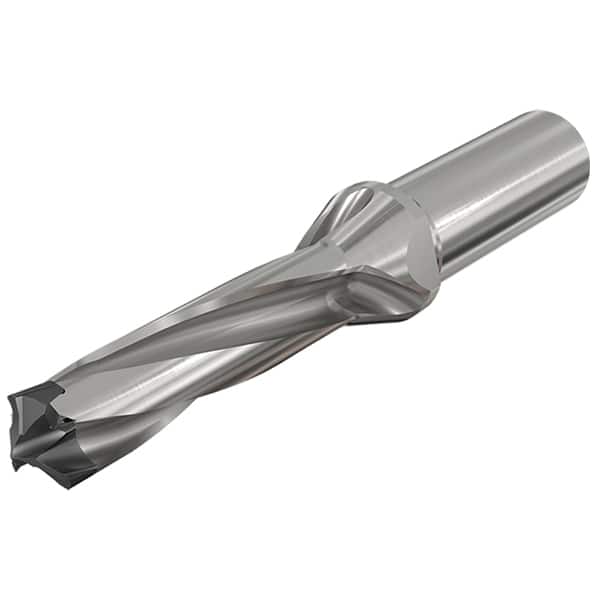

Replaceable Tip Drill: 17 to 17.9 mm Drill Dia, 60.9 mm Max Depth, 20 mm Straight-Cylindrical Shank Uses H3P Inserts, Seat Size 17, 5.3705″ OAL, Through Coolant
Item #: 15110315
Brand: Iscar
Model #: 3363119
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Minimum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (mm) | 17.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.7047 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 60.90 |
| Maximum Drill Depth (Decimal Inch) | 2.3976 |
| Shank Type | Straight-Cylindrical |
| Insert Style | H3P |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Seat Size | 17 |
| Shank Diameter (mm) | 20.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Compatible Insert Style | H3P |
| Compatible Insert Size Code | 170 |
| Overall Length (mm) | 136.41 |
| Overall Length (Decimal Inch) | 5.3705 |
| Series | LogIQ3Cham |
| Toolholder Style | D3N |
| Body Length (Decimal Inch) | 3.4020 |
| Body Length | 86.41 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.00 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Tip Length (mm) | 3.52 |
| Tip Length (Decimal Inch) | 0.1386 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 3 |
