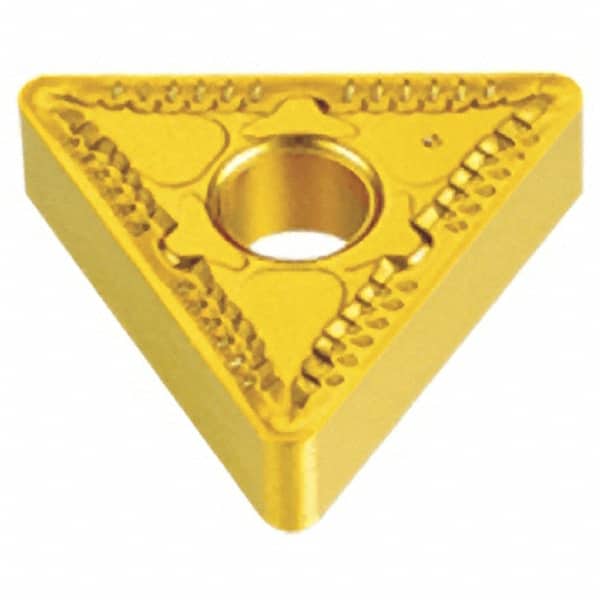

Iscar - TNMG433 GN Grade IC8350 Carbide Turning Insert
Item #: 91142653
Brand: Iscar
Model #: 5508548
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8660 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | IC8350 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | GN |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
