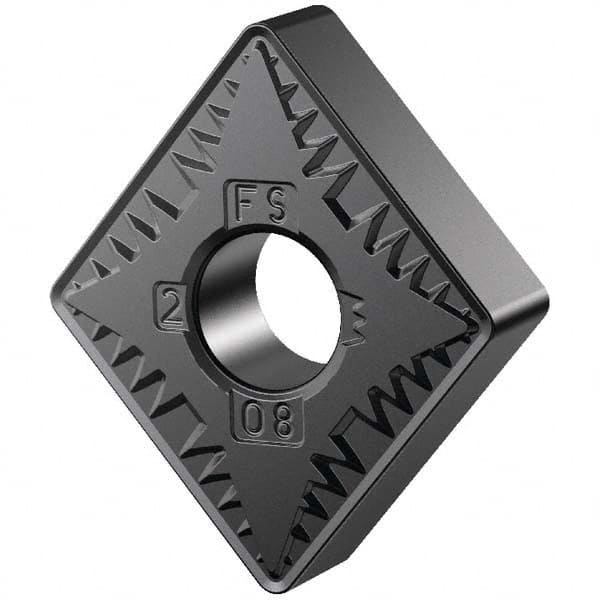

Kennametal - 430CNGG FS Grade KCS10B Carbide Turning Insert
Item #: 12256186
Brand: Kennametal
Model #: 6756002
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGG |
| Insert Size | 430 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5077 |
| Inscribed Circle (Decimal Inch) | 0.2031 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCS10B |
| Coating | AlTiN |
| Material Grade | KCS10B |
| Chip Breaker | FS |
| Insert Length (Decimal Inch) | 0.5077 |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | CNGG120402FS |
| Manufacturers Catalog Number | CNGG4305FS |
| Shape | Diamond/Rhombic |
