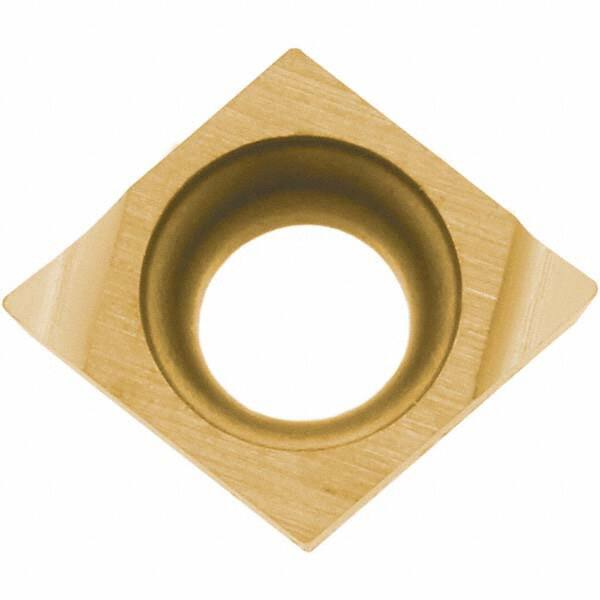

Kyocera - CCET110902 M-F Grade PV720 Cermet Turning Insert
Item #: 11383700
Brand: Kyocera
Model #: 8862072
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CCET |
| Insert Size | 110902 |
| Material | Cermet |
| Inscribed Circle (Decimal Inch) | 0.1378 |
| Thickness (Decimal Inch) | 0.0551 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | PV720 |
| Coating | TiCN (Megacoat Nano) |
| Chip Breaker | M-F |
| Hole Diameter (Decimal Inch) | 0.0748 |
| ISO Number | CCET030101ML-F |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCET110902MLF PV720 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Included Angle | 80 |
| Insert Hand | Left Hand |
| Series | CCET |
| Insert Holding Method | Screw or Clamp |
| Cutting Edge Style | Sharp |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing, Sub-Spindle |
| MultiUseTool | Yes |
| Shape | Diamond |
