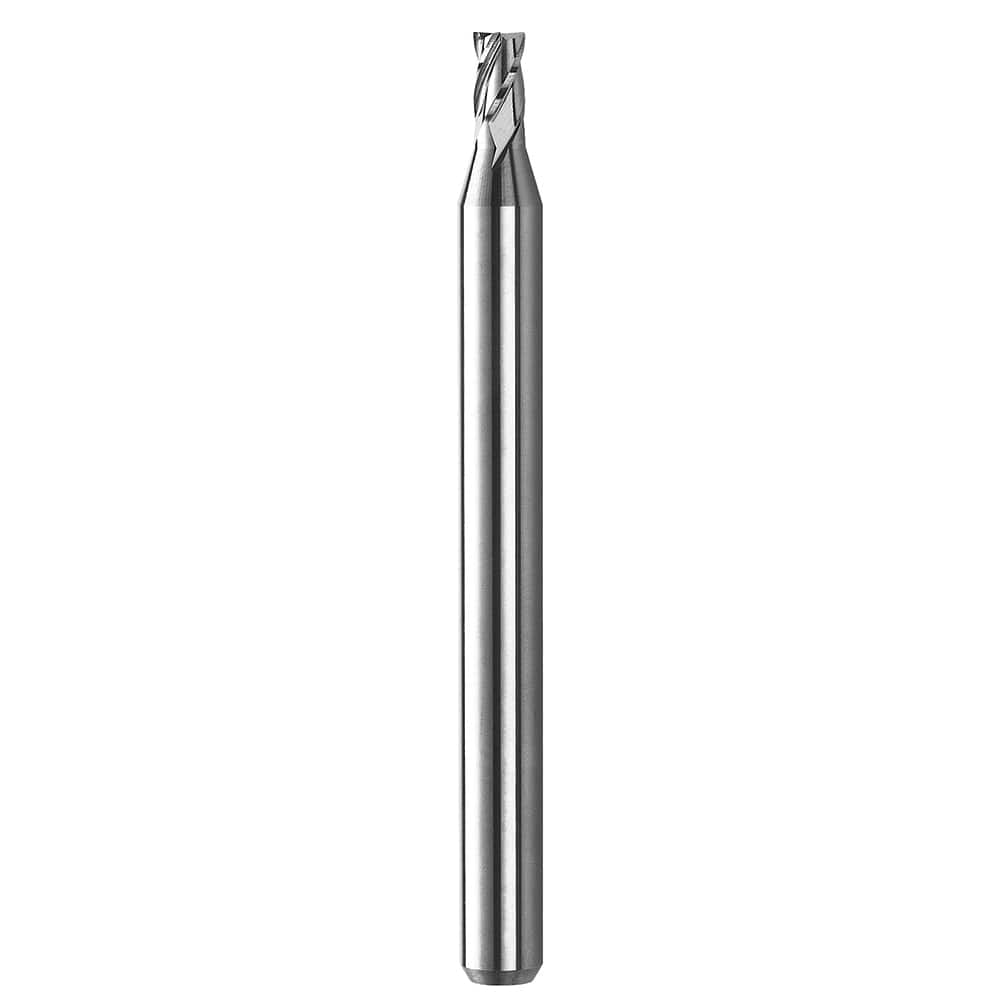

SGS - Square End Mills; Mill Diameter (mm): 2.90 ; Mill Diameter (Decimal Inch): 0.1142 ; Number of Flutes: 2 ; Length of Cut (mm): 8.7000 ; Length of Cut (Decimal Inch): 0.3425 ; Material: Solid Carbide
Item #: 14644959
Brand: SGS
Model #: 02890
Product Specifications
Square End Mills; Mill Diameter (mm): 2.90 ; Mill Diameter (Decimal Inch): 0.1142 ; Number of Flutes: 2 ; Length of Cut (mm): 8.7000 ; Length of Cut (Decimal Inch): 0.3425 ; Material: Solid Carbide
| Mill Diameter (mm) | 2.90 |
| Mill Diameter (Decimal Inch) | 0.1142 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 8.7000 |
| Length of Cut (Decimal Inch) | 0.3425 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 3.0000 |
| Single or Double End | Single |
| Overall Length (mm) | 38.0000 |
| Overall Length (Decimal Inch) | 1.49610 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Flute Type | Spiral |
| Length Type | Regular |
| Mill Diameter Tolerance (mm) | +0.0000/+0.0254 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 30 |
| Chipbreaker | No |
| Overall Length Tolerance (Decimal Inch) | +0.062/-0.062 |
| PSC Code | 3455 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | M2SM |
