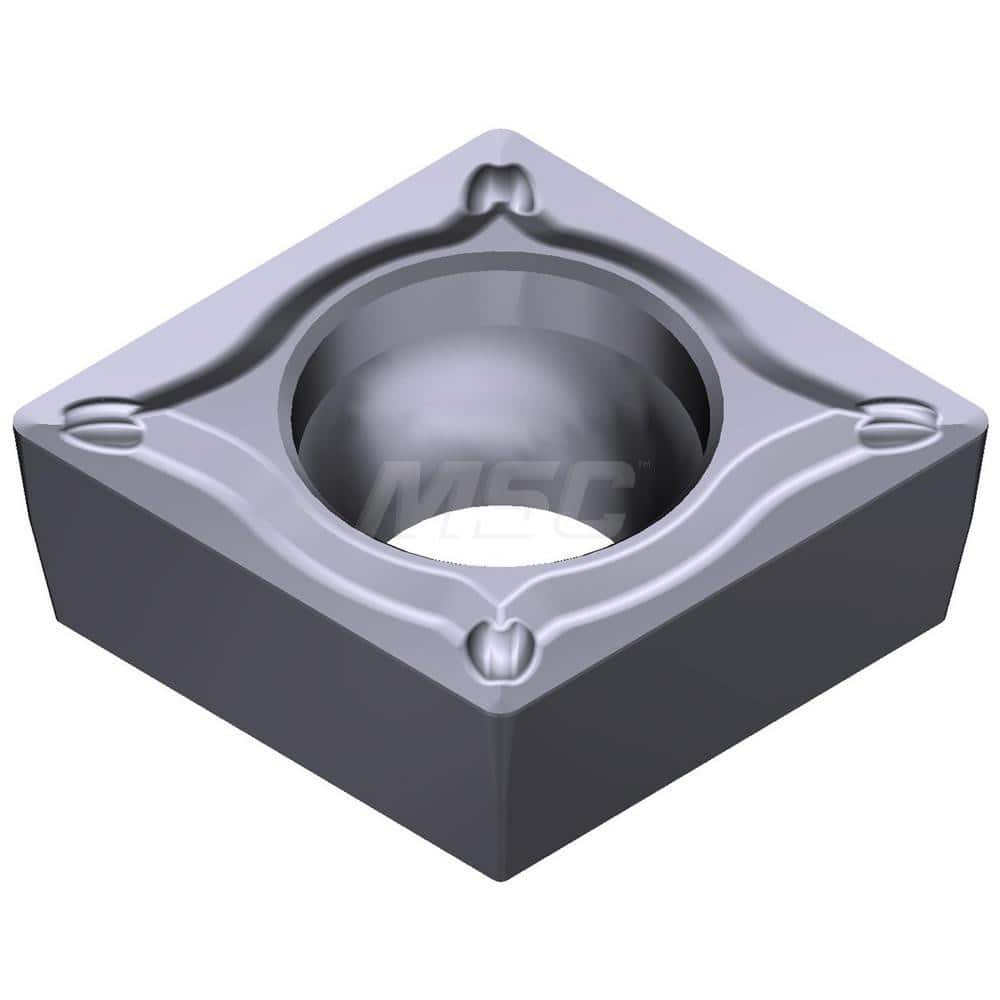

Turning Insert: CPMT32.52ESU AC5005S, Solid Carbide Absotech Finish, 0.3819″ Long, 3/8″ Inscribed Circle, 0.0315″ Corner Radius, 80.0 ° N/A Series AC5005S
Item #: 14599658
Brand: Sumitomo
Model #: 19W2W40
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 32.52 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5005S |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Series | AC5005S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3819 |
| Iso Code | CPMT09T308N-SU |
| Manufacturers Catalog Number | CPMT32.52ESU-AC5005S |
| Chip Breaker | ESU |
| Coating/Finish | Absotech |
