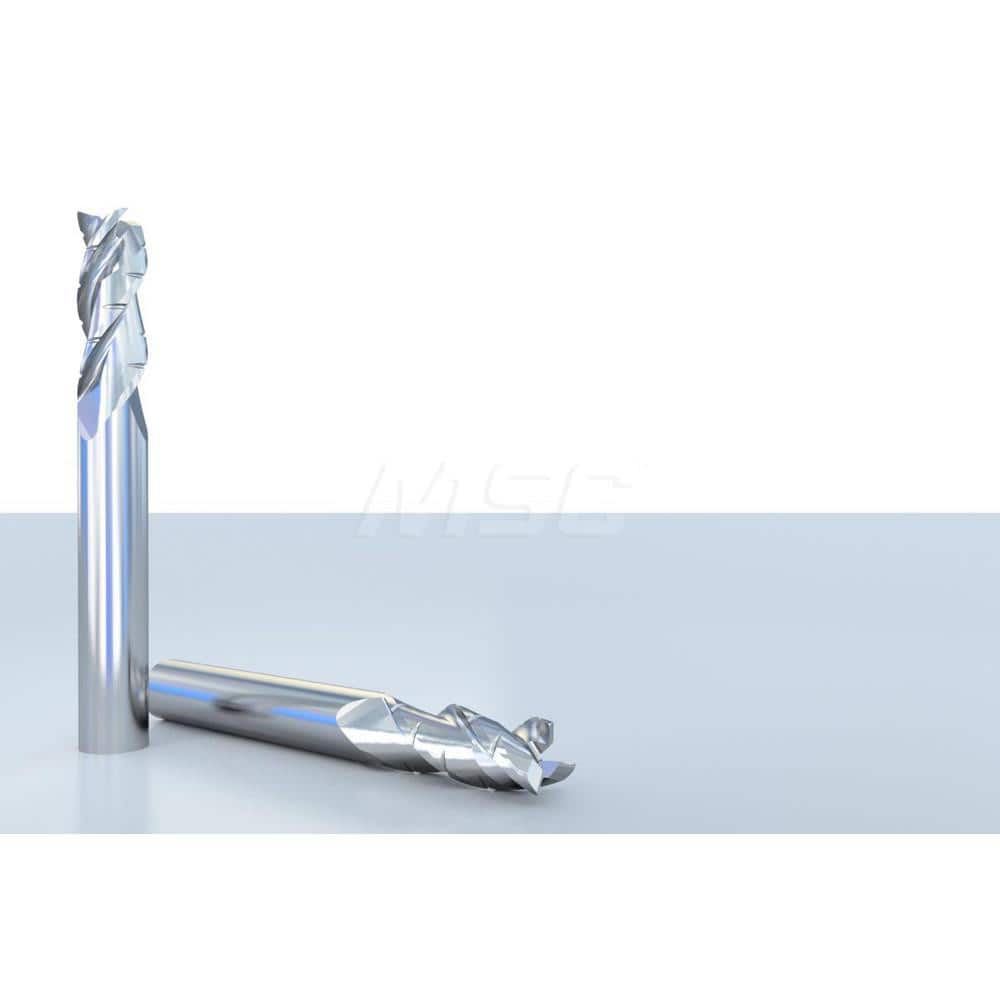

Corner Radius End Mill: 5/8″ Dia, 1-5/8″ LOC, 0.02″ Radius, 3 Flutes, Solid Carbide 5″ OAL, 5/8″ Shank Dia, 37 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series Armory
Item #: 14547137
Brand: GWS
Model #: 105259
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 1-5/8 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Flute Type | Upcut |
| Helix Angle | 37 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Neck Diameter (Decimal Inch) | 0.5900 |
| Reach Length (Inch) | 2-5/8 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Manufacturers Catalog Number | ARTLSU30625-02 |
| Coating/Finish | Bright/Uncoated |
